BTS640S2GATMA1
Manufacturer:
Infineon
Mfr.Part #:
BTS640S2GATMA1
Datasheet:
Description:

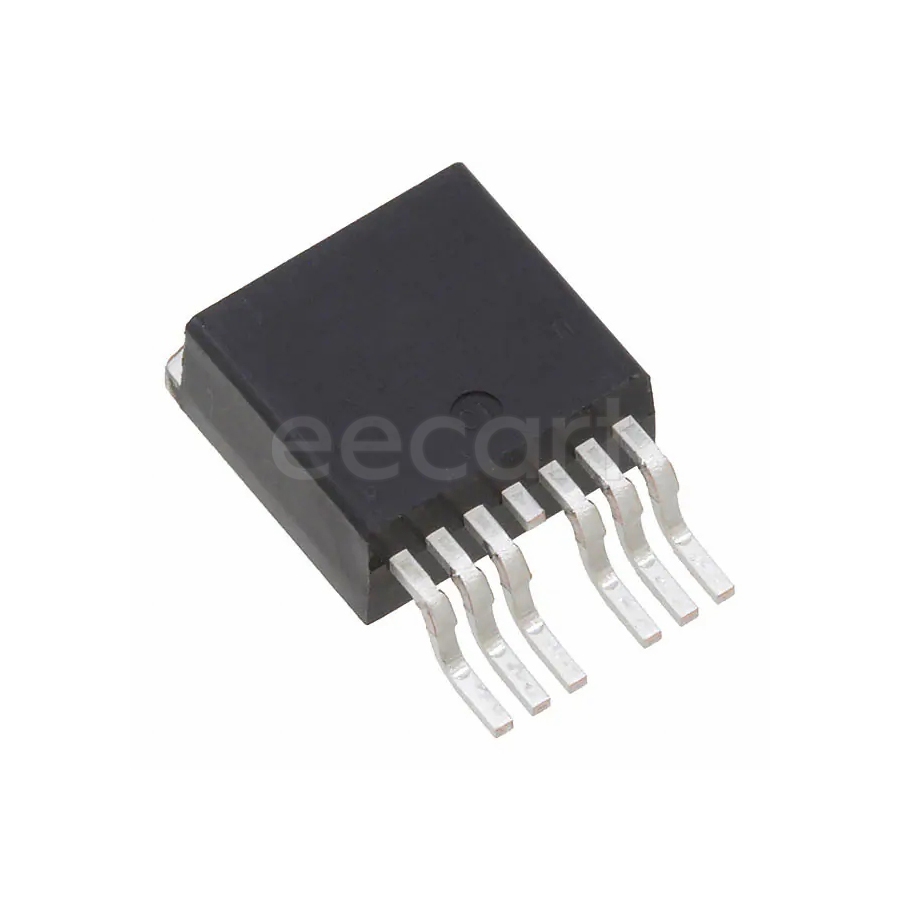

Power Switch ICs - Power Distribution TO-263-7 SMD/SMT 30 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | High Side |
| Interface | On/Off, Parallel |
| Output Current | 4 A |
| Operating Supply Voltage | 5 V to 24 V |
| Output Type | N-Channel |
| Max Power Dissipation | 85 W |
| Max Supply Voltage | 34 V |
| Power Dissipation | 85 W |
| Max Output Current | 11.4 A |
| Number of Channels | 1 |
| Output Configuration | High Side |
| Number of Outputs | 1 |
| Nominal Supply Current | 1.2 mA |
| Nominal Input Voltage | 34 V |
| Fault Protection | Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 1000 |
| On Resistance (RON) | 30 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 24 A |
Stock: 2611
Distributors
pcbx
pcbxUnit Price$2.96660
Ext.Price$2.96660
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.96660 | $2.96660 |
| 10 | $2.25958 | $22.59580 |
| 25 | $2.08432 | $52.10800 |
| 50 | $1.98133 | $99.06650 |
| 100 | $1.88341 | $188.34100 |
| 300 | $1.81017 | $543.05100 |
| 500 | $1.73978 | $869.89000 |
| 1000 | $1.68336 | $1683.36000 |
