IKW15N120T2
Manufacturer:
Infineon
Mfr.Part #:
IKW15N120T2
Datasheet:
Description:

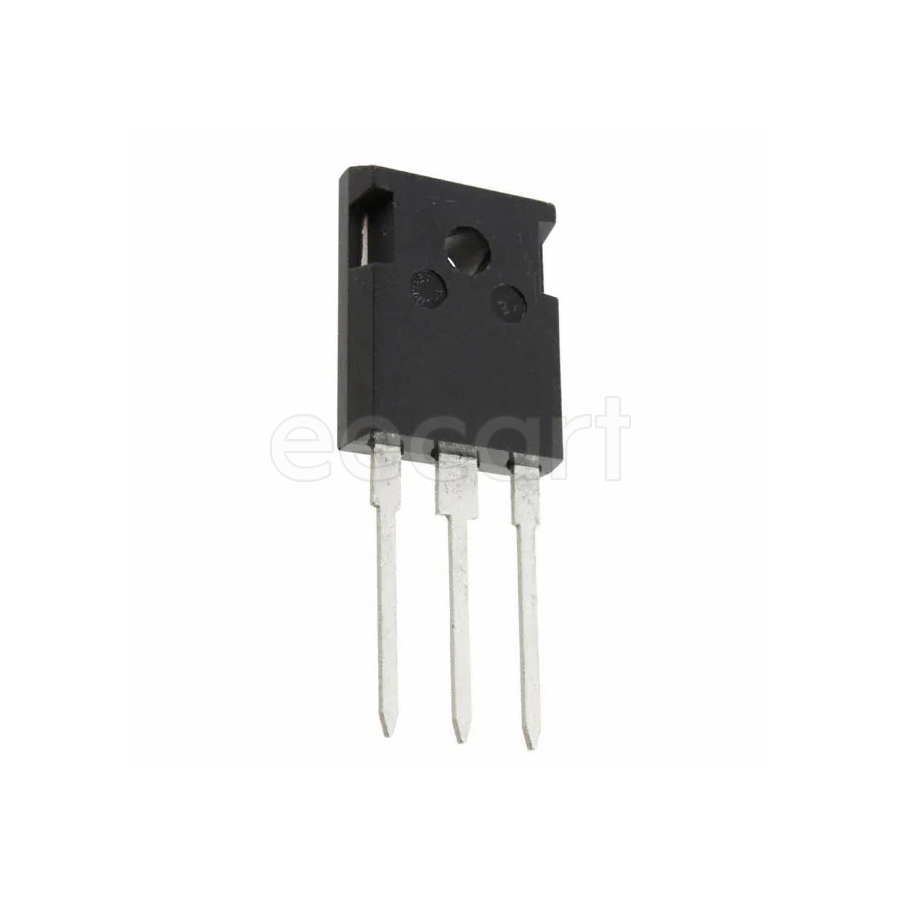

IGBTs TO-247 Through Hole Single 1.2 kV 235 W 30 A
| Parameter | Value |
|---|---|
| Length | 16.13 mm |
| Width | 5.21 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 21.1 mm |
| Packaging | Tube |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Forward Voltage | 1.75 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 235 W |
| Power Dissipation | 235 W |
| Max Collector Current | 30 A |
| Collector Emitter Breakdown Voltage | 1.2 kV |
| Reverse Recovery Time | 300 ns |
| Continuous Collector Current | 30 A |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Collector Emitter Saturation Voltage | 2.2 V |
| Schedule B | 8541290080 |
| Package Quantity | 240 |
| Maximum Gate Emitter Voltage | 20 V |
Stock: 222
Distributors
pcbx
pcbxUnit Price$2.68733
Ext.Price$2.68733
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.68733 | $2.68733 |
| 10 | $2.31283 | $23.12830 |
| 25 | $2.17484 | $54.37100 |
| 50 | $2.04508 | $102.25400 |
| 100 | $1.92306 | $192.30600 |
| 300 | $1.80832 | $542.49600 |
| 500 | $1.70041 | $850.20500 |
