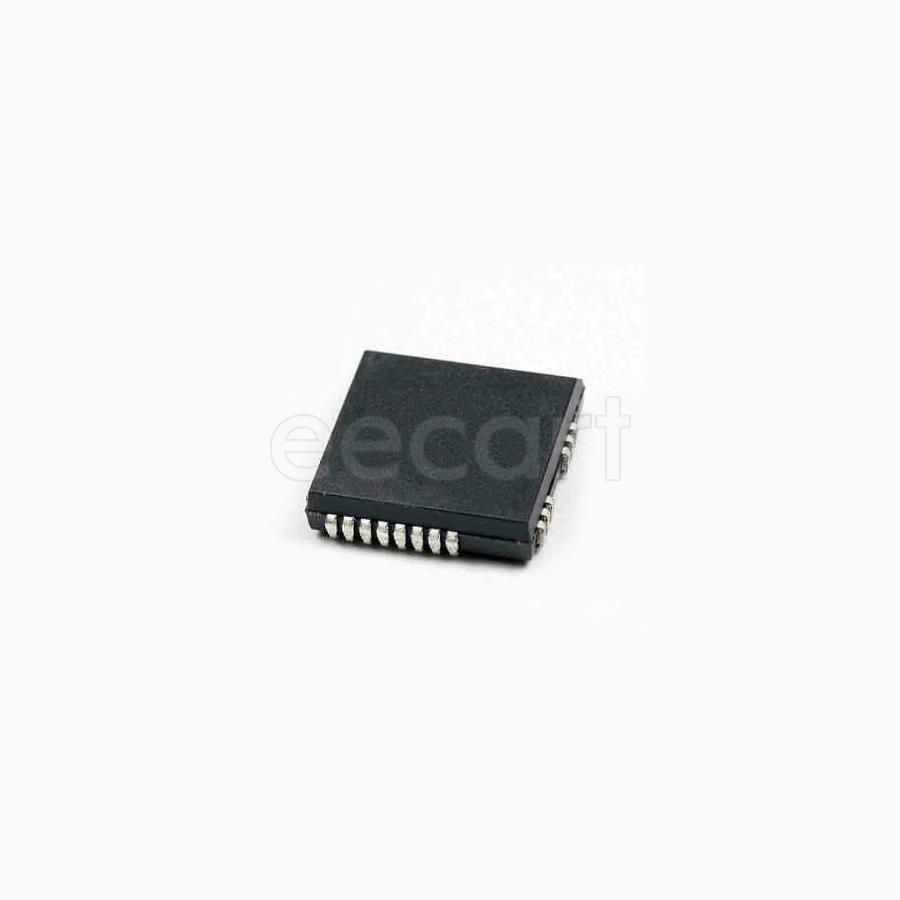

IR2135JTRPBF
Manufacturer:
Infineon
Mfr.Part #:
IR2135JTRPBF
Datasheet:
Description:
Gate Drivers PLCC-32 SMD/SMT Half-Bridge IGBT, N-Channel MOSFET 3-Phase
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Max Supply Voltage | 20 V |
| Min Supply Voltage | 10 V |
| Number of Outputs | 6 |
| RoHS | Compliant |
| Number of Drivers | 6 |
| Rise Time | 150 ns |
| Output Current | 200 mA |
| Fall Time | 70 ns |
| Channel Type | 3-Phase |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage | 0.8 V, 2.2 V |
| High Side Voltage | 600 V |
| Packaging | Reel |
| Configuration | Half-Bridge |
Stock: 126
Distributors
pcbx
pcbxUnit Price$5.16463
Ext.Price$5.16463
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.16463 | $5.16463 |
| 10 | $4.00706 | $40.07060 |
| 25 | $3.71809 | $92.95225 |
| 50 | $3.67771 | $183.88550 |
| 100 | $3.63773 | $363.77300 |
| 300 | $3.22342 | $967.02600 |
| 500 | $2.85632 | $1428.16000 |
| 1000 | $2.75116 | $2751.16000 |
| 3000 | $2.74518 | $8235.54000 |
| 5000 | $2.73920 | $13696.00000 |
