A72-110
Manufacturer:
JDTfuse
Mfr.Part #:
A72-110
Datasheet:
Description:

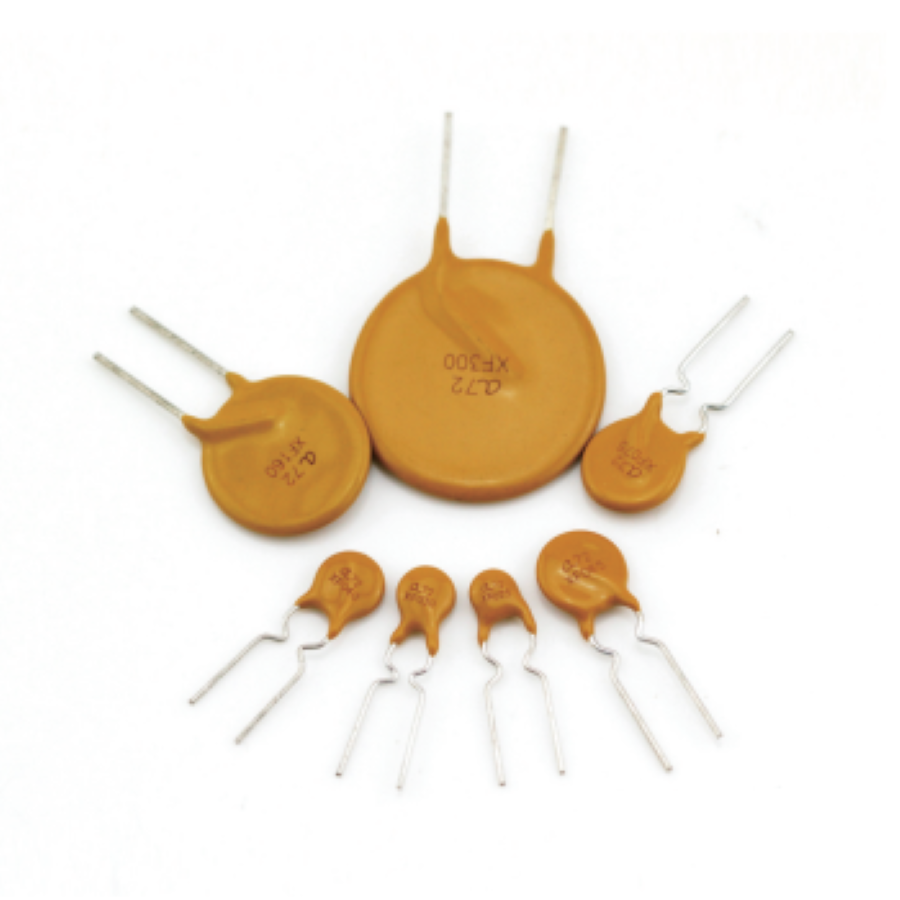

PTC Resettable Fuses Plug Through Hole Hold Current:1.1 A Voltage Rating:72 V Trip Current:2.2 A
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 5.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 72 V |
| Thickness | 3.1 mm |
| RoHS | Compliant |
| Max Current Rating | 40 A |
| Hold Current | 1.1 A |
| Time to Trip | 8.2 s |
| Trip Current | 2.2 A |
| Maximum Resistance 1 Hour (R1max) | 400 mΩ |
| Minimum Resistance Initial (Rmin) | 150 mΩ |
| Lead Spacing | 5.1 mm |
Stock: 859
Distributors
pcbx
pcbxUnit Price$0.11232
Ext.Price$0.11232
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11232 | $0.11232 |
| 10 | $0.05616 | $0.56160 |
| 50 | $0.05054 | $2.52700 |
| 100 | $0.04549 | $4.54900 |
| 500 | $0.04024 | $20.12000 |
| 1000 | $0.03560 | $35.60000 |
| 3000 | $0.03398 | $101.94000 |
| 5000 | $0.03244 | $162.20000 |
| 10000 | $0.03077 | $307.70000 |
