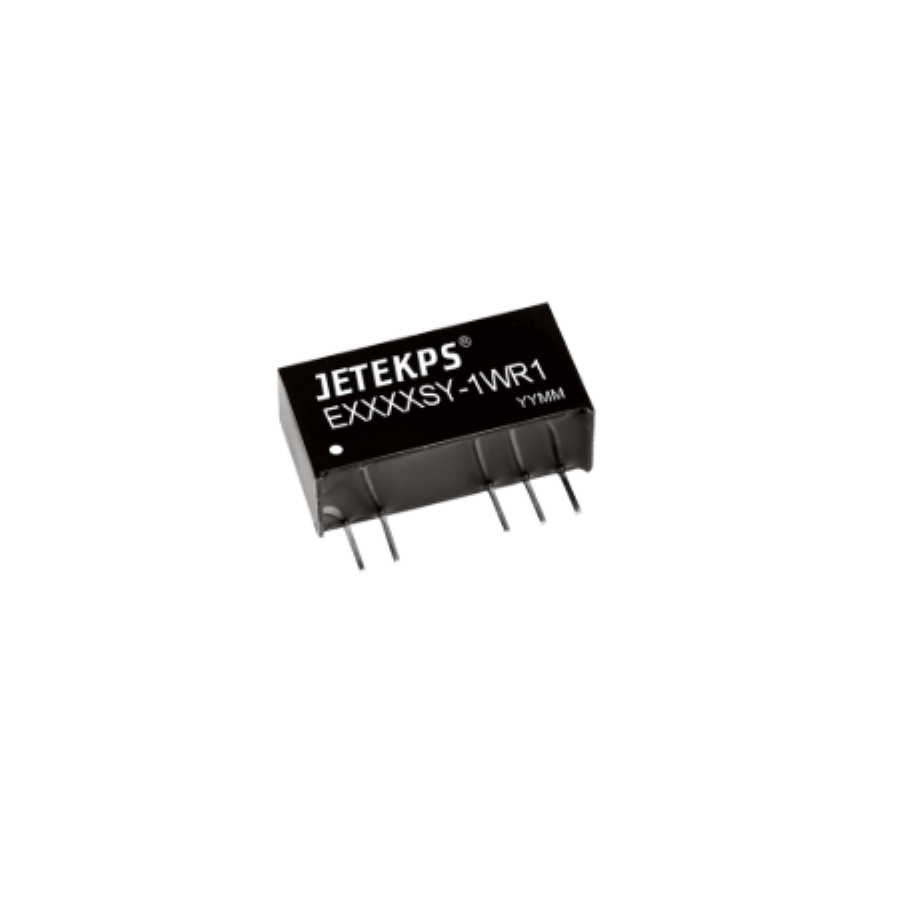

E0509SY-1WR1
Manufacturer:
JETEKPS
Mfr.Part #:
E0509SY-1WR1
Datasheet:
Description:
DC to DC Converters SIP-5 Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 85 %
| Parameter | Value |
|---|---|
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| RoHS | Compliant |
| Packaging | Tube |
| Output Power | 1 W |
| Isolation Voltage | 3 kV |
| Max Input Voltage | 5.5 V |
| Nominal Input Voltage | 5 V |
| Min Input Voltage | 4.5 V |
| Output Voltage-Channel 1 | 9 V |
| Output Current-Channel 2 | -56 mA |
| Output Current-Channel 1 | 56 mA |
| Output Voltage-Channel 2 | -9 V |
| Efficiency | 85 % |
| Length | 19.6 mm |
| Width | 6 mm |
| Height | 10 mm |
Stock: 6
Distributors
pcbx
pcbxUnit Price$1.98384
Ext.Price$1.98384
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.98384 | $1.98384 |
| 10 | $1.59523 | $15.95230 |
| 25 | $1.46416 | $36.60400 |
| 50 | $1.34386 | $67.19300 |
| 100 | $1.23345 | $123.34500 |
| 300 | $1.18926 | $356.77800 |
| 500 | $1.14664 | $573.32000 |
| 1000 | $1.10968 | $1109.68000 |
