JK16-400
Manufacturer:
JK
Mfr.Part #:
JK16-400
Datasheet:
Description:

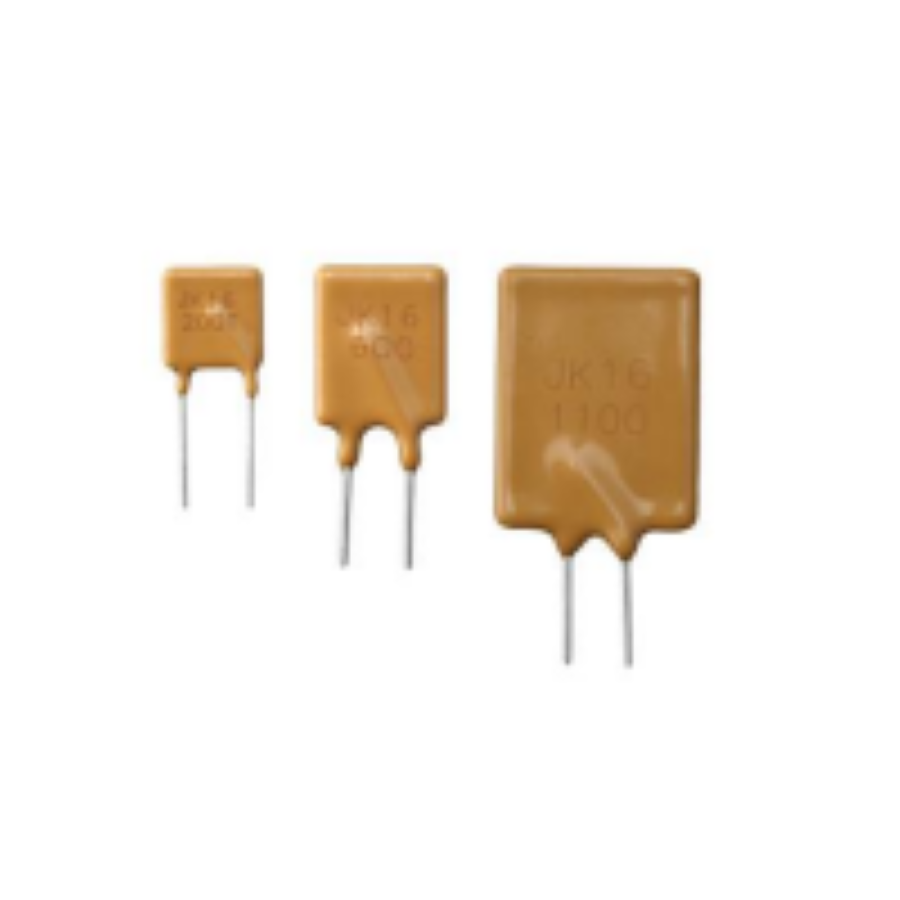

PTC Resettable Fuses Through Hole,P=5.1mm Through Hole Hold Current:4 A Voltage Rating:16 V Trip Current:8 A
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 13 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| Thickness | 3 mm |
| RoHS | Compliant |
| Max Current Rating | 100 A |
| Hold Current | 4 A |
| Time to Trip | 15 s |
| Trip Current | 8 A |
| Maximum Resistance 1 Hour (R1max) | 40 mΩ |
| Minimum Resistance Initial (Rmin) | 20 mΩ |
| Lead Spacing | 5.1 mm |
