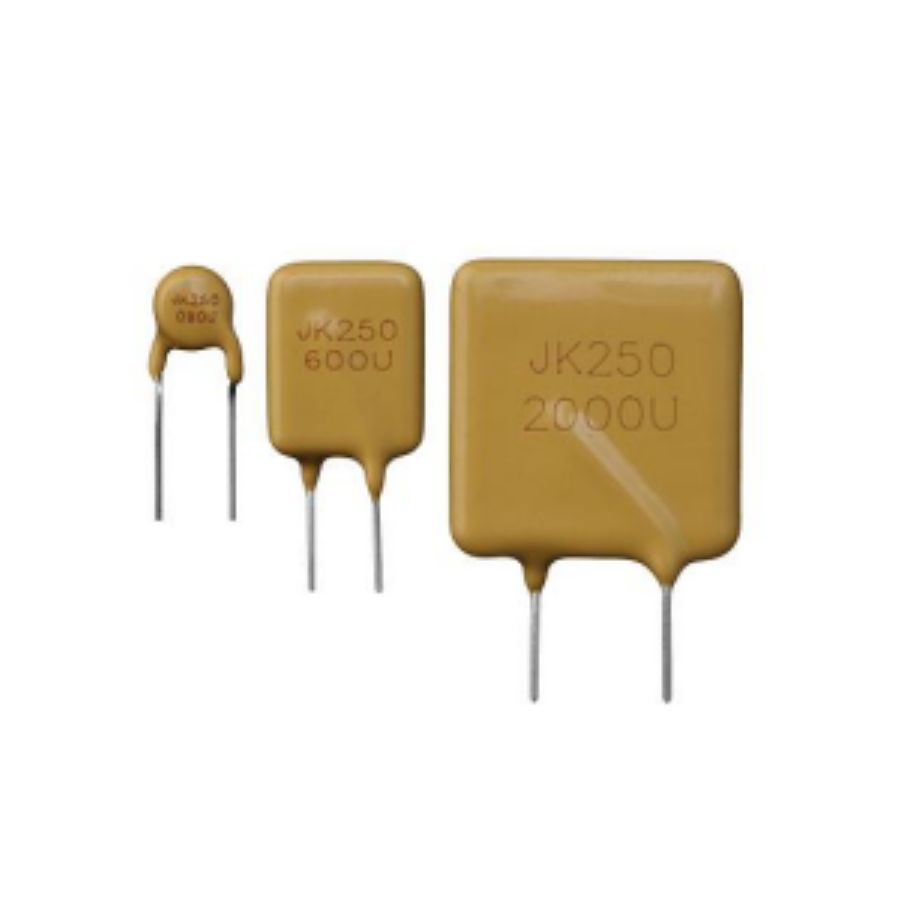

JK250-110U
Manufacturer:
JK
Mfr.Part #:
JK250-110U
Datasheet:
Description:
PTC Resettable Fuses Through Hole,P=5.1mm Through Hole Hold Current:110 mA Voltage Rating:250 V Trip Current:220 mA
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 12.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Thickness | 4.5 mm |
| RoHS | Compliant |
| Max Current Rating | 3 A |
| Hold Current | 110 mA |
| Time to Trip | 2 s |
| Trip Current | 220 mA |
| Maximum Resistance 1 Hour (R1max) | 12 Ω |
| Minimum Resistance Initial (Rmin) | 6 Ω |
| Lead Spacing | 5.1 mm |
Stock: 834
Distributors
pcbx
pcbxUnit Price$0.08198
Ext.Price$0.08198
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08198 | $0.08198 |
| 10 | $0.04099 | $0.40990 |
| 50 | $0.03704 | $1.85200 |
| 100 | $0.03347 | $3.34700 |
| 500 | $0.02928 | $14.64000 |
| 1000 | $0.02561 | $25.61000 |
| 3000 | $0.02449 | $73.47000 |
| 5000 | $0.02342 | $117.10000 |
| 10000 | $0.02225 | $222.50000 |
