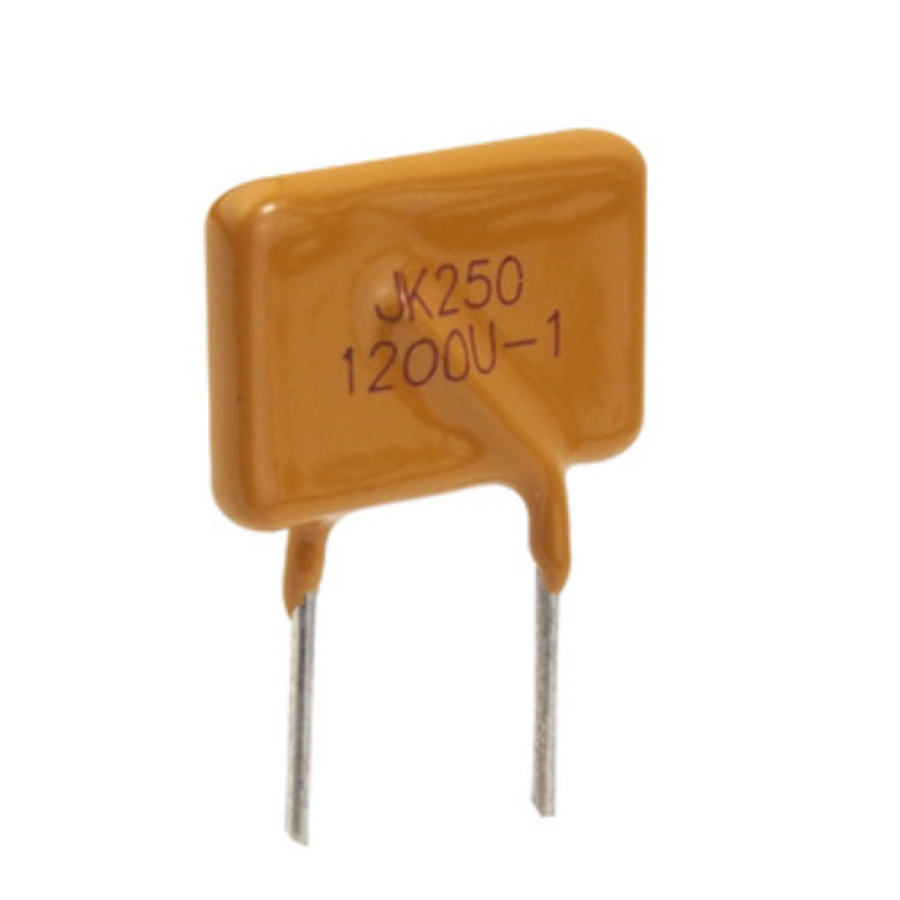

JK250-120U
Manufacturer:
JK
Mfr.Part #:
JK250-120U
Datasheet:
Description:
PTC Resettable Fuses Through Hole,P=5.1mm Through Hole Hold Current:120 mA Voltage Rating:250 V Trip Current:240 mA
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 12.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Thickness | 4.5 mm |
| RoHS | Compliant |
| Max Current Rating | 3 A |
| Hold Current | 120 mA |
| Time to Trip | 2 s |
| Trip Current | 240 mA |
| Maximum Resistance 1 Hour (R1max) | 11 Ω |
| Minimum Resistance Initial (Rmin) | 6 Ω |
| Lead Spacing | 5.1 mm |
Stock: 123767
Distributors
pcbx
pcbxUnit Price$0.08428
Ext.Price$0.08428
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08428 | $0.08428 |
| 10 | $0.04214 | $0.42140 |
| 50 | $0.03793 | $1.89650 |
| 100 | $0.03414 | $3.41400 |
| 500 | $0.02906 | $14.53000 |
| 1000 | $0.02474 | $24.74000 |
| 3000 | $0.02422 | $72.66000 |
| 5000 | $0.02372 | $118.60000 |
| 10000 | $0.02293 | $229.30000 |
