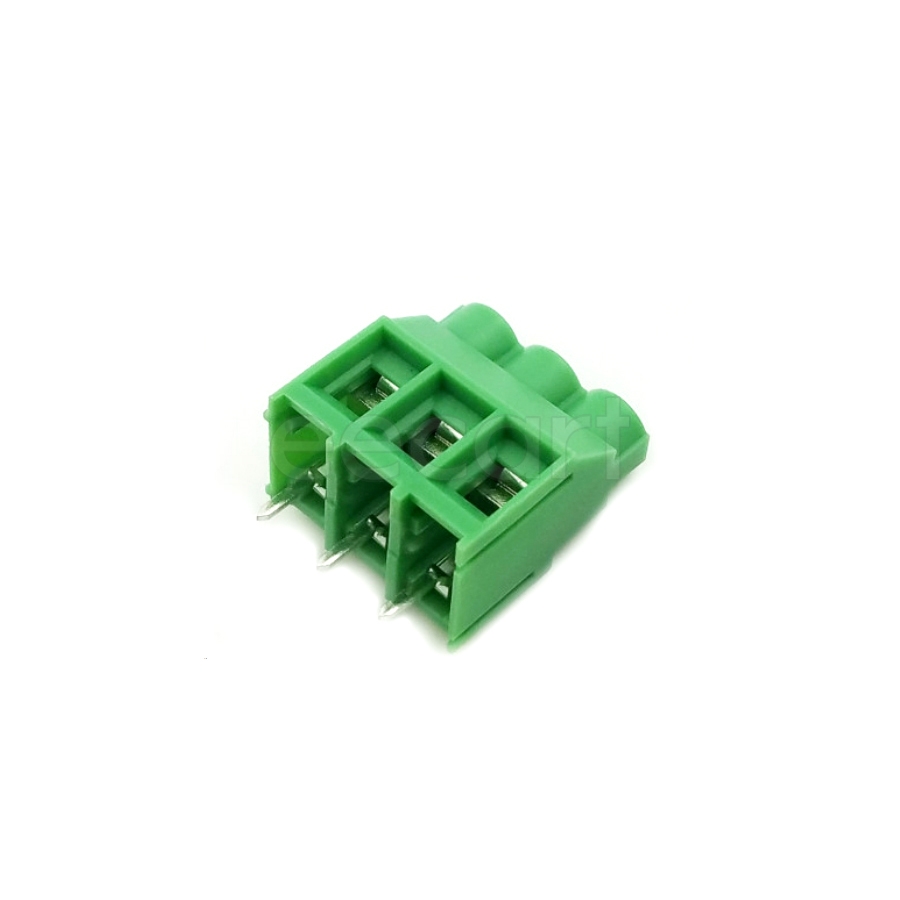

JL636-63503G01
Manufacturer:
JILN
Mfr.Part #:
JL636-63503G01
Datasheet:
Description:
Terminal Blocks Through Hole 3 6.35 mm 30 A 300 V 26 AWG to 10 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Pitch | 6.35 mm |
| Current Rating | 30 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Wire/Cable Gauge | 10 AWG to 26 AWG |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 10 AWG |
Stock: 198
Distributors
pcbx
pcbxUnit Price$0.34512
Ext.Price$0.34512
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34512 | $0.34512 |
| 10 | $0.30583 | $3.05830 |
| 50 | $0.27101 | $13.55050 |
| 100 | $0.23378 | $23.37800 |
| 500 | $0.20166 | $100.83000 |
| 1000 | $0.19232 | $192.32000 |
| 3000 | $0.18342 | $550.26000 |
| 5000 | $0.17493 | $874.65000 |
