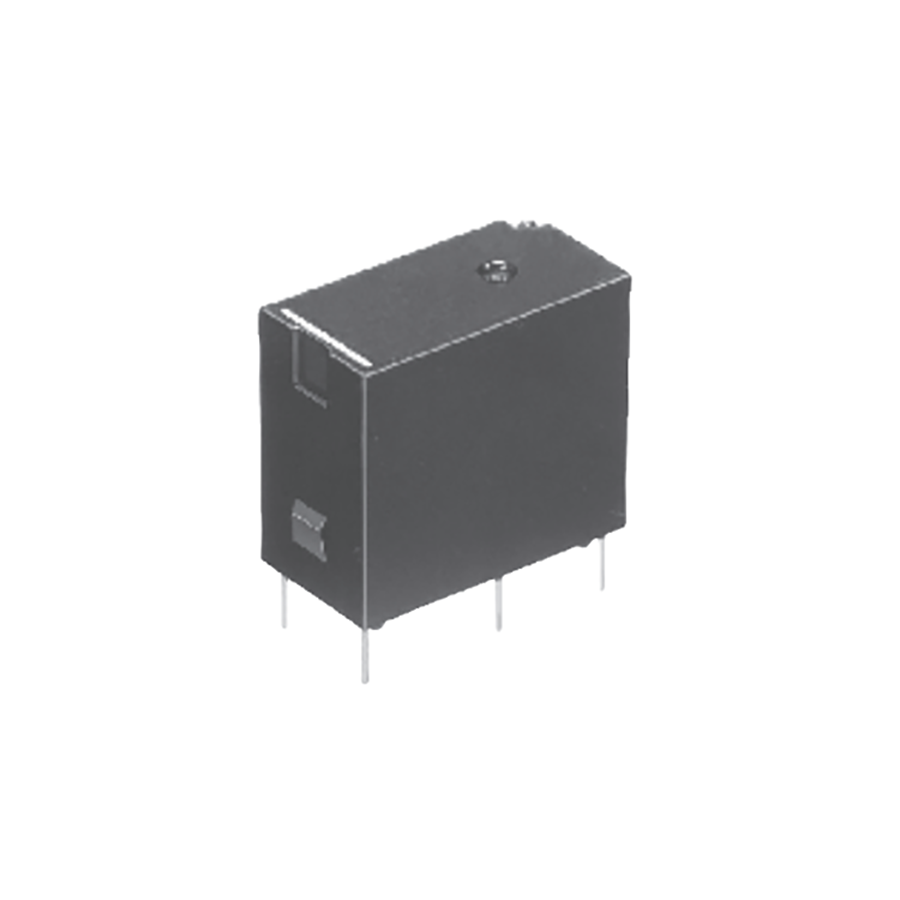

JQ1AP-12V-F
Manufacturer:
Panasonic
Mfr.Part #:
JQ1AP-12V-F
Datasheet:
Description:
Signal Relays Through Hole 16.7 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 110 V |
| Length | 20 mm |
| Width | 20 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Power Rating | 200 mW |
| Height | 15.6 mm |
| Packaging | Bulk |
| Depth | 10 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 7 g |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 110 V |
| Approvals | CSA, TUV, UL, VDE |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 16.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 720 Ω |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Contact Current Rating | 10 A |
| power consumption | 200 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 110 VDC |
| Coil Power | 200 mW |
| Must Operate Voltage | 9.6 V |
| Must Release Voltage | 600 mV |
| Contact Form | SPST-NO (1 Form A) |
