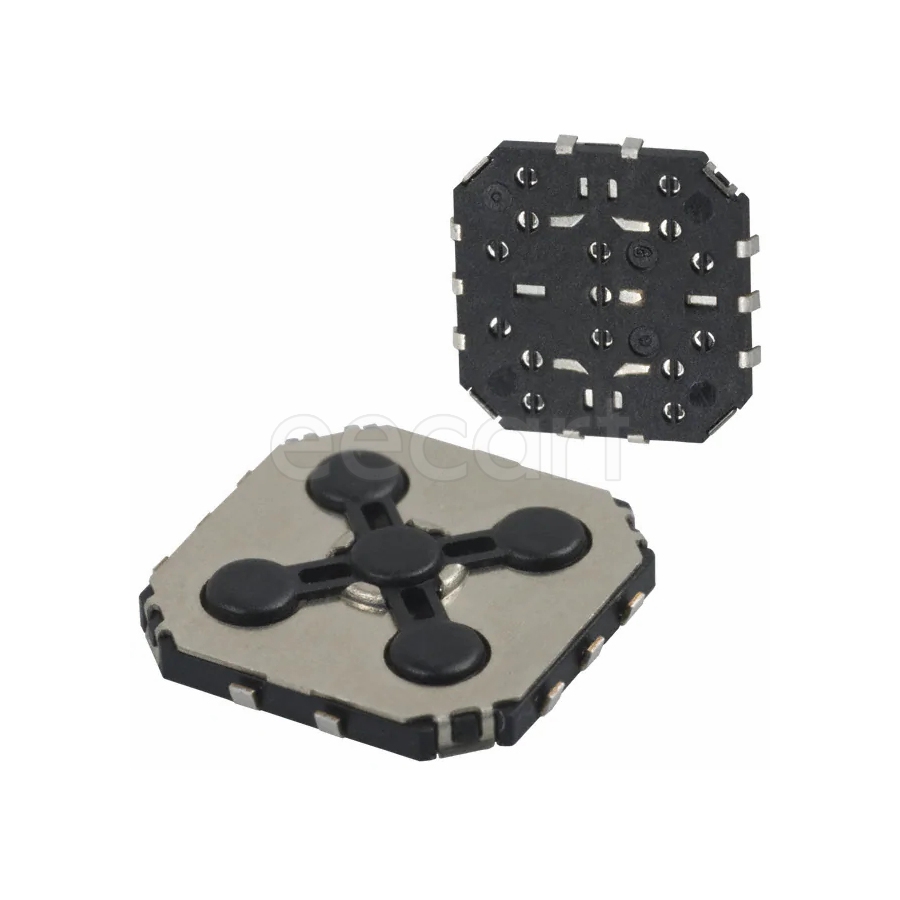

JS1300AQ
Manufacturer:
E-Switch
Mfr.Part #:
JS1300AQ
Datasheet:
Description:
Tactile Switches SMD/SMT 4-Way Directional, Center Select
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 10.4 mm |
| Width | 9.8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 1.55 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Throw Configuration | SPST |
| Electrical Life | 200 kcycles |
| Mechanical Life | 200 kcycles |
| Contact Current Rating | 20 mA |
| Switch Function | 4-Way Directional, Center Select |
| Packaging | Reel |
| Voltage Rating (AC) | 12 V |
| Actuator Type | Tactile (5 Button) |
Stock: 1147
Distributors
pcbx
pcbxUnit Price$1.45641
Ext.Price$1.45641
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45641 | $1.45641 |
| 10 | $1.19720 | $11.97200 |
| 25 | $1.10741 | $27.68525 |
| 50 | $1.04409 | $52.20450 |
| 100 | $0.98430 | $98.43000 |
| 300 | $0.89795 | $269.38500 |
| 500 | $0.81918 | $409.59000 |
| 1000 | $0.74731 | $747.31000 |
