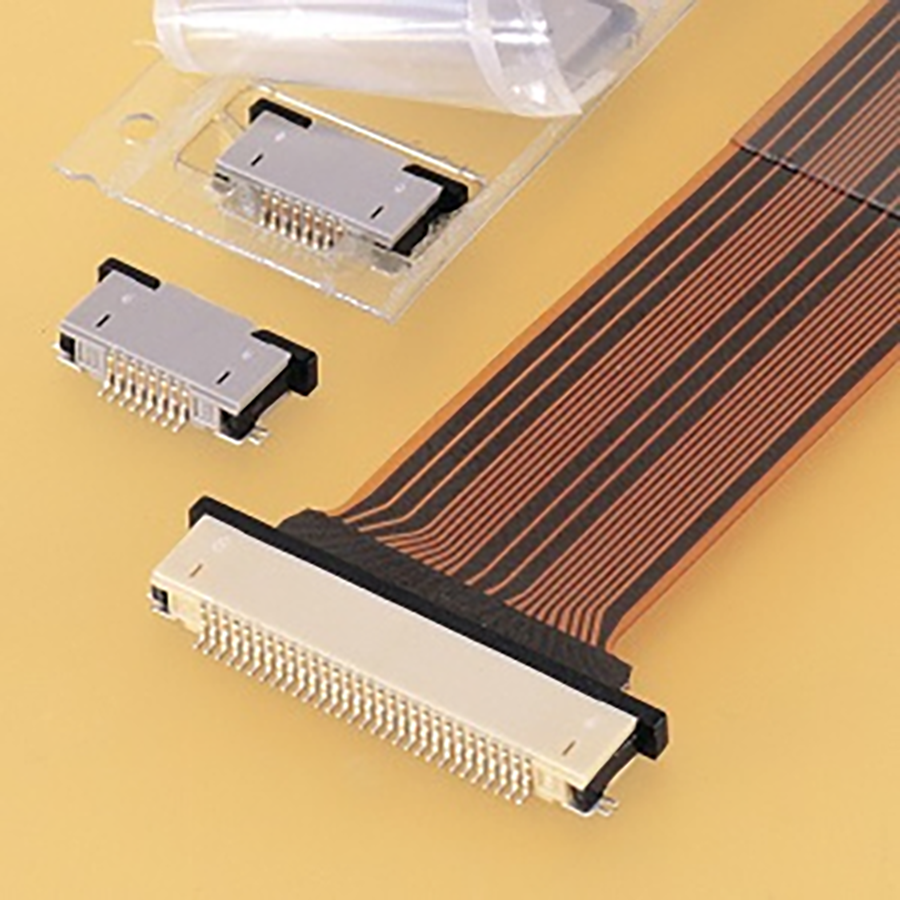

24FLZ-SM2-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
24FLZ-SM2-TB(LF)(SN)
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:24 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Actuator Material | Nylon, Polyamide |
| Mounting Angle | Right Angle |
Stock: 1249
Distributors
pcbx
pcbxUnit Price$0.90110
Ext.Price$0.90110
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90110 | $0.90110 |
| 10 | $0.73866 | $7.38660 |
| 25 | $0.63863 | $15.96575 |
| 50 | $0.61910 | $30.95500 |
| 100 | $0.60016 | $60.01600 |
| 300 | $0.55854 | $167.56200 |
| 500 | $0.51980 | $259.90000 |
| 1000 | $0.48902 | $489.02000 |
| 3000 | $0.46446 | $1393.38000 |
| 5000 | $0.44114 | $2205.70000 |
