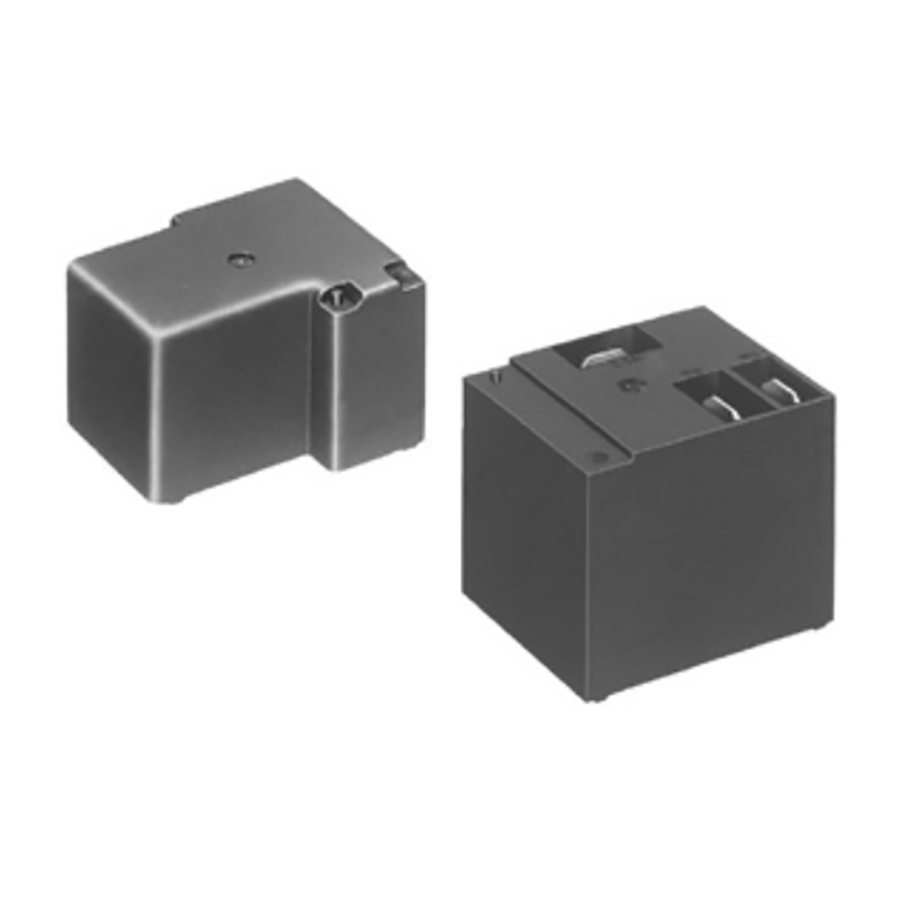

JTN1AS-TMP-F-DC12V
Manufacturer:
Panasonic
Mfr.Part #:
JTN1AS-TMP-F-DC12V
Datasheet:
Description:
Power Relays Through Hole 66.6 mA 180 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 32.2 mm |
| Width | 27.9 mm |
| Termination | Quick Connect |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 4 |
| Power Rating | 800 mW |
| Height | 27.9 mm |
| Packaging | Bulk |
| Depth | 27.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Silver, Tin |
| Max Current Rating | 30 A |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 66.6 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 180 Ω |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Contact Current Rating | 30 A |
| power consumption | 800 mW |
| Termination Style | Solder Pin |
| Switching Voltage | 277 VAC |
| Coil Power | 800 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
