K101J15C0GF53L2
Manufacturer:
Vishay
Mfr.Part #:
K101J15C0GF53L2
Datasheet:
Description:

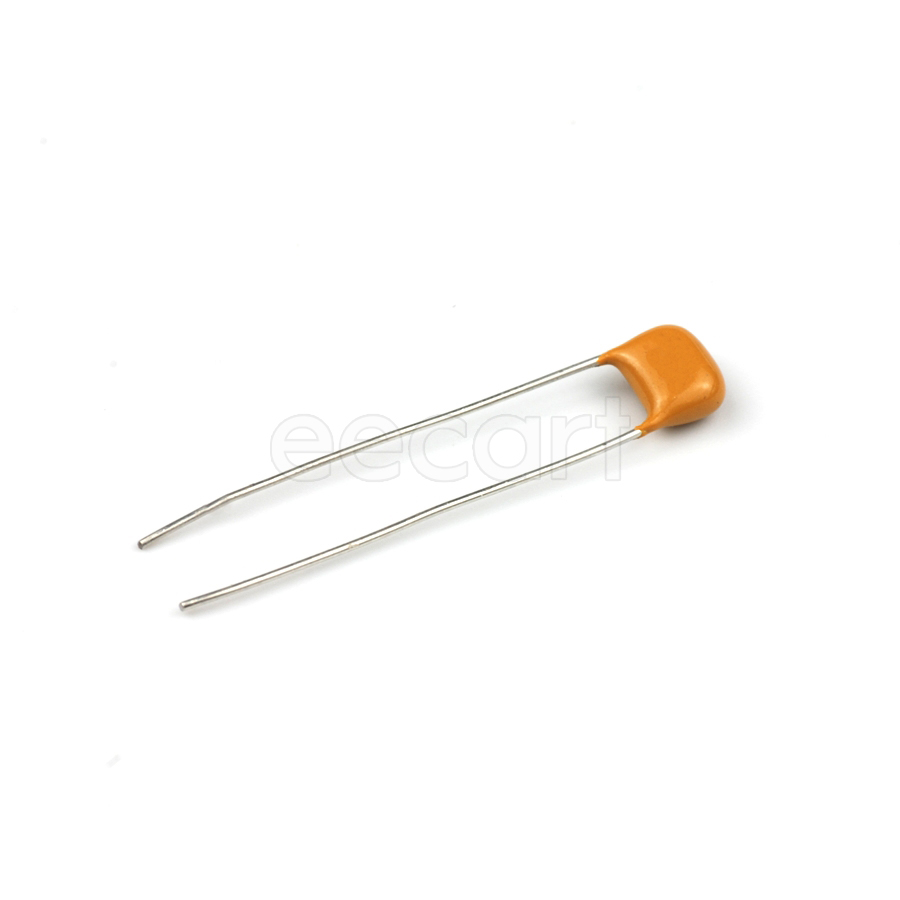

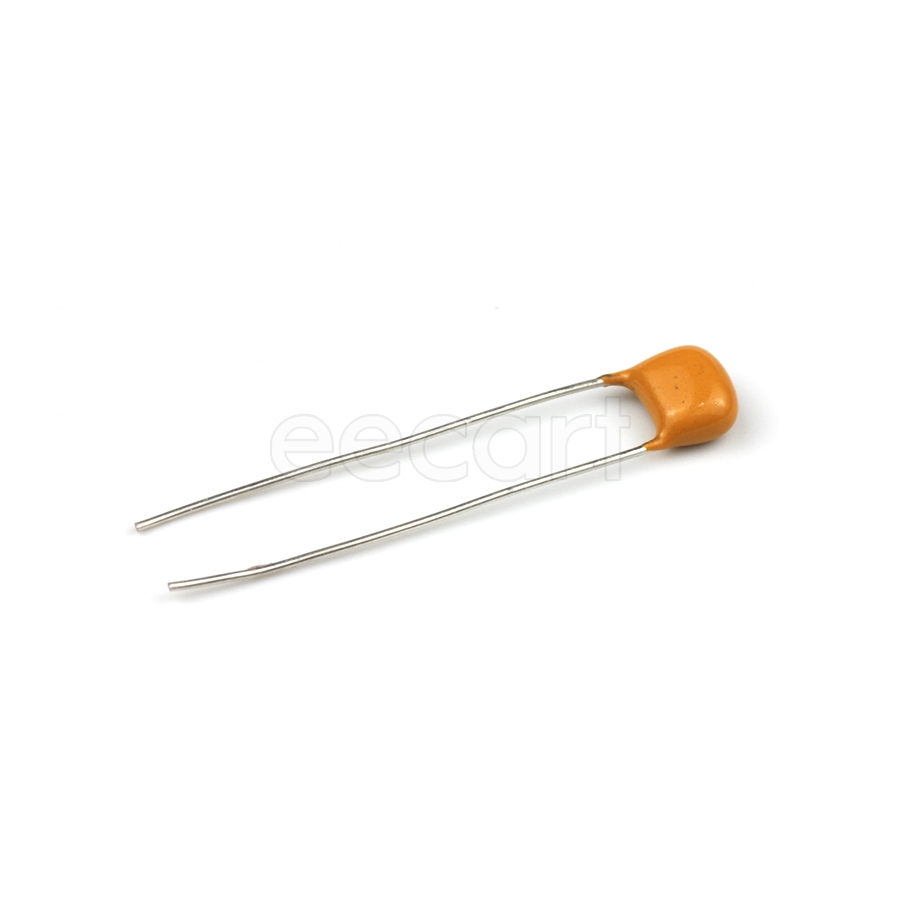

Ceramic Capacitors 4.00mmL×2.50mmW×1.58mmH Through Hole 100 pF 5 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 100 pF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 1.575 mm |
| Length | 3.9878 mm |
| Width | 4 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | C0G |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 2 |
| Temperature Coefficient | 30 ppm/°C |
| Height | 4 mm |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Depth | 2.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| REACH SVHC | Unknown |
| Lead Length | 30 mm |
| Lead/Base Style | Straight |
| Schedule B | 8532240060 |
Stock: 14566
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.06130 | $0.61300 |
| 50 | $0.05746 | $2.87300 |
| 100 | $0.05386 | $5.38600 |
| 500 | $0.04129 | $20.64500 |
| 1000 | $0.03753 | $37.53000 |
| 3000 | $0.03394 | $101.82000 |
| 5000 | $0.03069 | $153.45000 |
