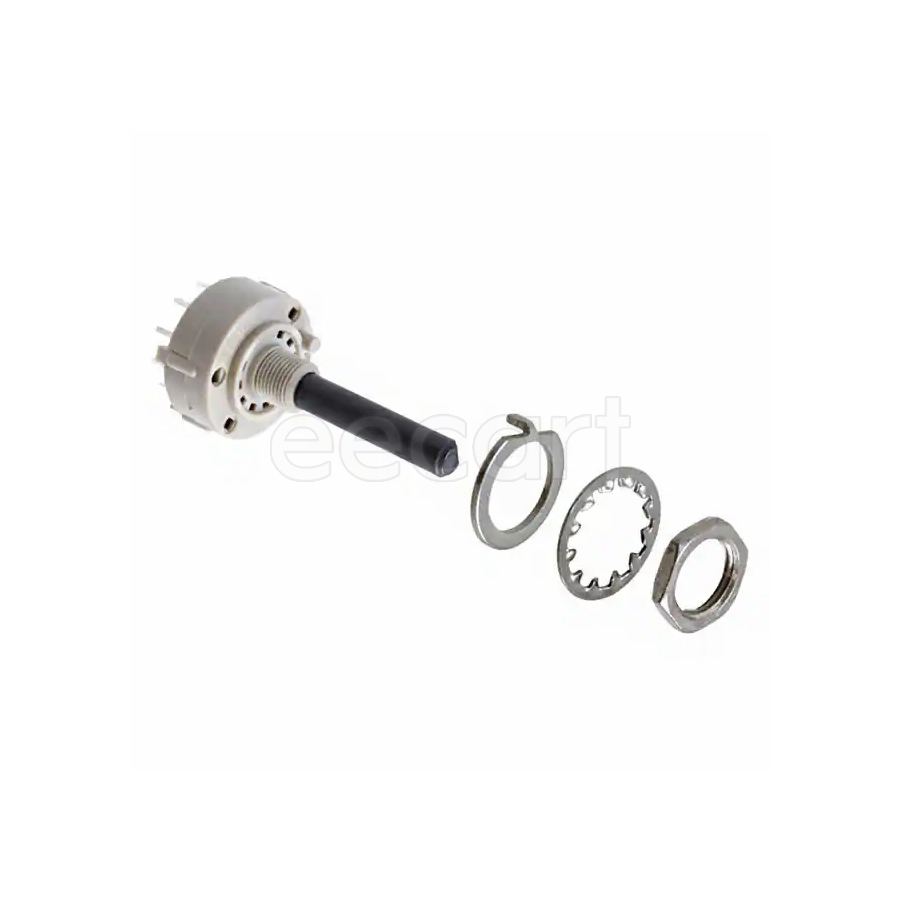

KC34A30.001NPS
Manufacturer:
E-Switch
Mfr.Part #:
KC34A30.001NPS
Datasheet:
Description:
Rotary Switches Through Hole 3P4T Fixed Index Angle:30 ° Number of Positions:4 Number of Decks:1 Current Rating:5 A Flatted
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 110 V |
| Termination | PC Pin |
| Diameter | 26.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Height | 14.1 mm |
| Circuit Type | 3P4T |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250 V |
| Orientation | Vertical |
| Actuator Length | 30 mm |
| Throw Configuration | 3P4T |
| Number of Positions | 4 |
| Contact Style | Non-Shorting |
| Max Voltage Rating (AC) | 250 V |
| Number of Poles per Deck | 3 |
| Number of Decks | 1 |
| Actuator Type | Flatted |
| Index Angle | 30 ° |
| Index Stops | Fixed |
| Packaging | Bulk |
