MPC0740LR42C
Manufacturer:
KEMET
Mfr.Part #:
MPC0740LR42C
Datasheet:
Description:

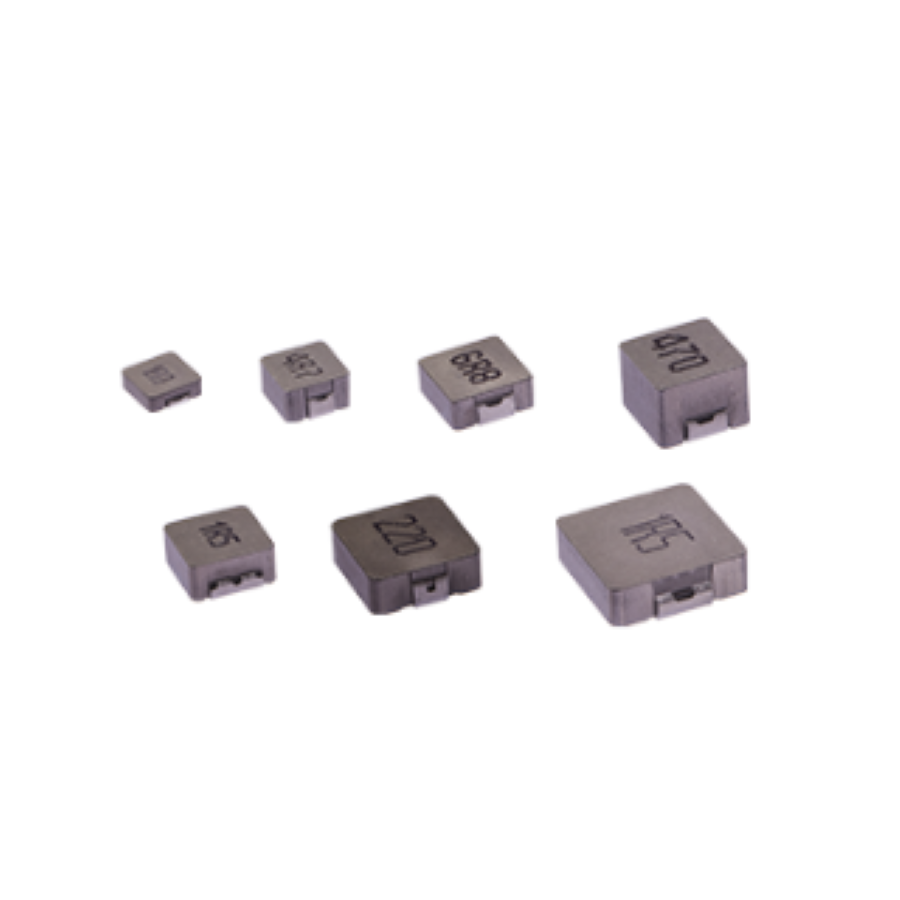

Fixed Inductors 8.00mmL×6.70mmW×4.00mmH SMD/SMT 420 nH 20 % 22 A 1.55 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.99 mm |
| Length | 8 mm |
| Width | 6.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 22 A |
| DC Resistance (DCR) | 1.55 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 420 nH |
| Core Material | Ferrite |
| RMS Current (Irms) | 22 A |
| inductance tolerance | 20 % |
| Max DC Current | 22 A |
| DC Current | 22 A |
| Saturation Current | 20 A |
| Schedule B | 8504500000 |
Stock: 1234
Distributors
pcbx
pcbxUnit Price$0.98885
Ext.Price$0.98885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98885 | $0.98885 |
| 10 | $0.81143 | $8.11430 |
| 25 | $0.76030 | $19.00750 |
| 50 | $0.71239 | $35.61950 |
| 100 | $0.66751 | $66.75100 |
| 300 | $0.62545 | $187.63500 |
| 500 | $0.58604 | $293.02000 |
| 1000 | $0.54913 | $549.13000 |
