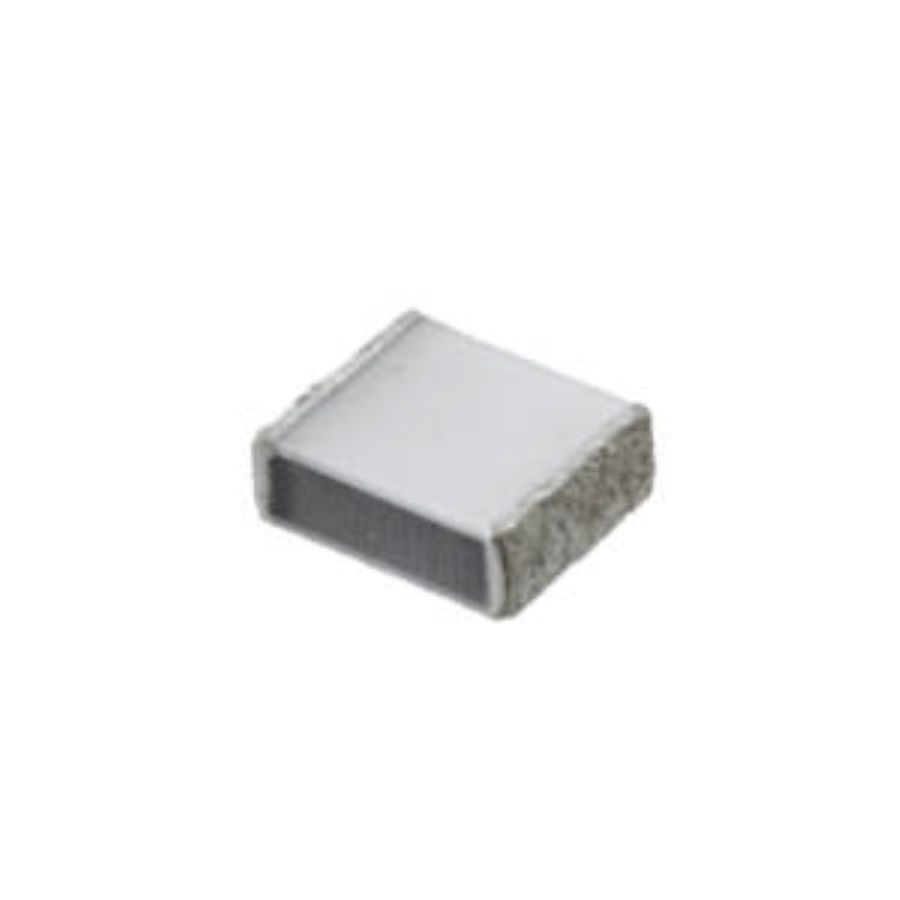

SMC5.7104J50J35TR12
Manufacturer:
KEMET
Mfr.Part #:
SMC5.7104J50J35TR12
Datasheet:
Description:
Film Capacitors SMD/SMT 100 nF 5 % Polyphenylene Sulfide (PPS) Voltage Rating (DC):50 V Voltage Rating (AC):30 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 4.19 mm |
| Length | 5.7 mm |
| Width | 5.0038 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyphenylene Sulfide (PPS) |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5750 |
| Voltage Rating (AC) | 30 V |
| Dissipation Factor | 0.5 % |
| Height | 4 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Dielectric Material | Polyphenylene |
| Schedule B | 8532250010 |
