T356A105K035AT
Manufacturer:
KEMET
Mfr.Part #:
T356A105K035AT
Datasheet:
Description:

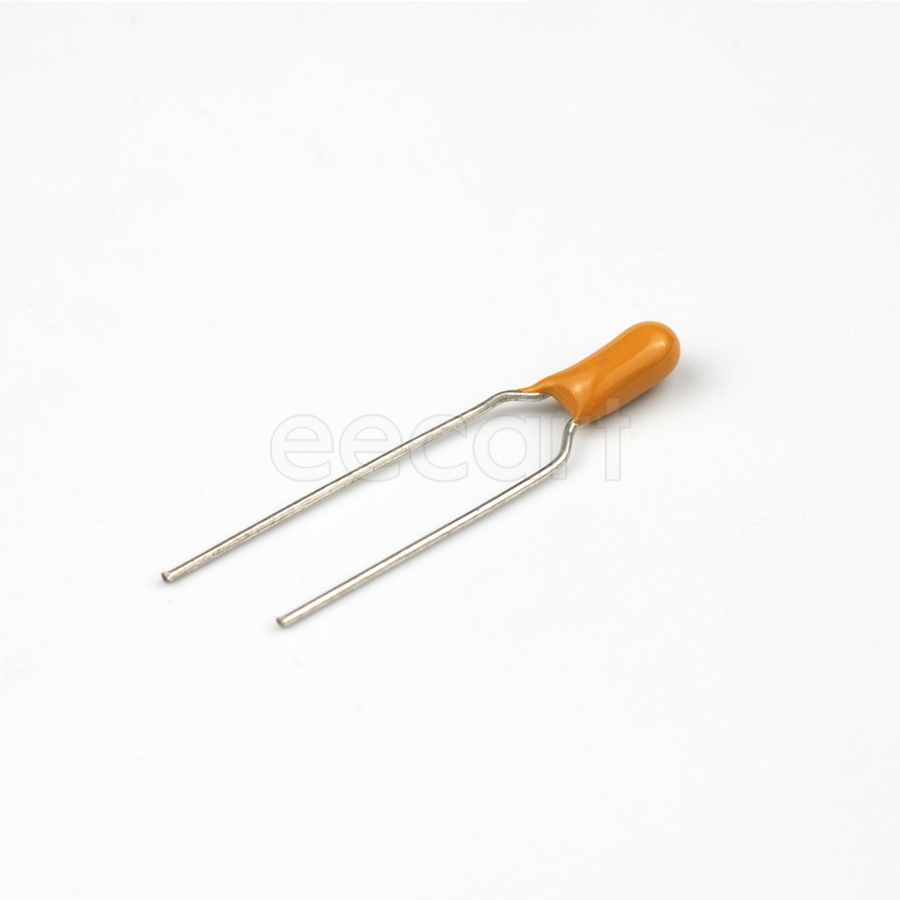

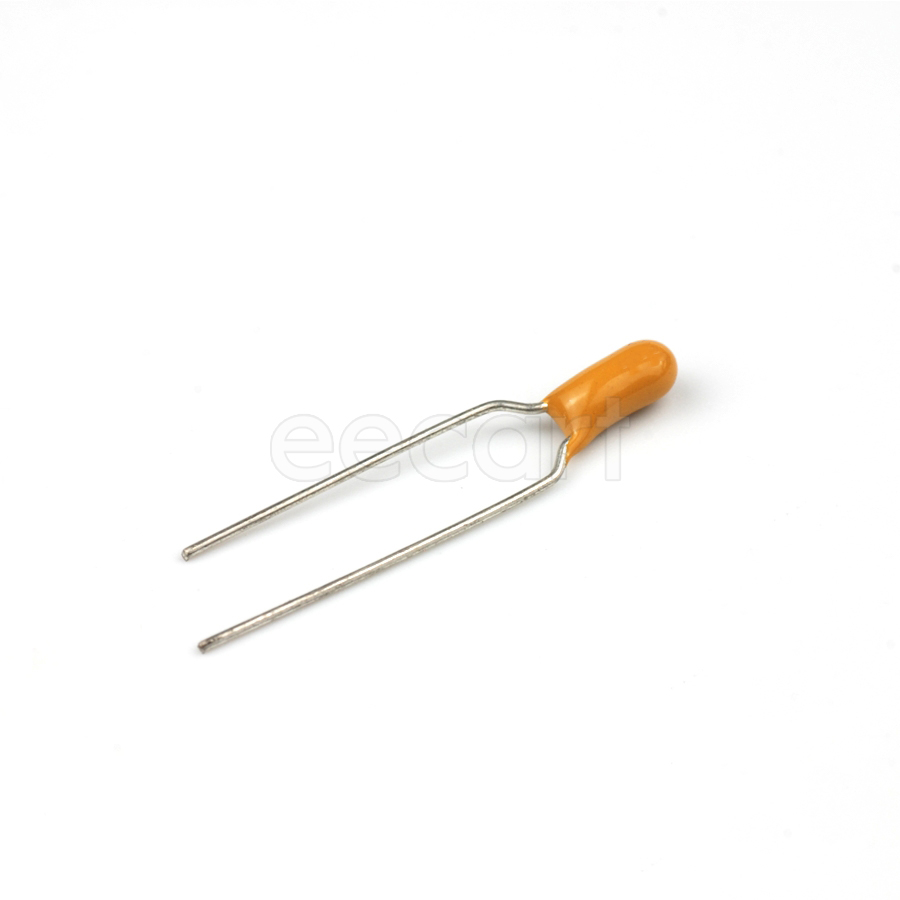

Tantalum Capacitors Radial Through Hole 1 µF 10 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 8 Ω |
| Height - Seated (Max) | 8.61 mm |
| Length | 8.6 mm |
| Termination | Radial |
| Diameter | 4.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 500 nA |
| Dissipation Factor | 3 % |
| Height | 8.6 mm |
| Packaging | Bulk |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 5.08 mm |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Type | Conformal Coated |
| Schedule B | 8532210040 |
Stock: 157
Distributors
pcbx
pcbxUnit Price$1.92699
Ext.Price$1.92699
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.92699 | $1.92699 |
| 10 | $1.34330 | $13.43300 |
| 25 | $1.22188 | $30.54700 |
| 50 | $1.11144 | $55.57200 |
| 100 | $1.03981 | $103.98100 |
| 300 | $0.97738 | $293.21400 |
| 500 | $0.91869 | $459.34500 |
| 1000 | $0.88118 | $881.18000 |
| 3000 | $0.83482 | $2504.46000 |
| 5000 | $0.81767 | $4088.35000 |
