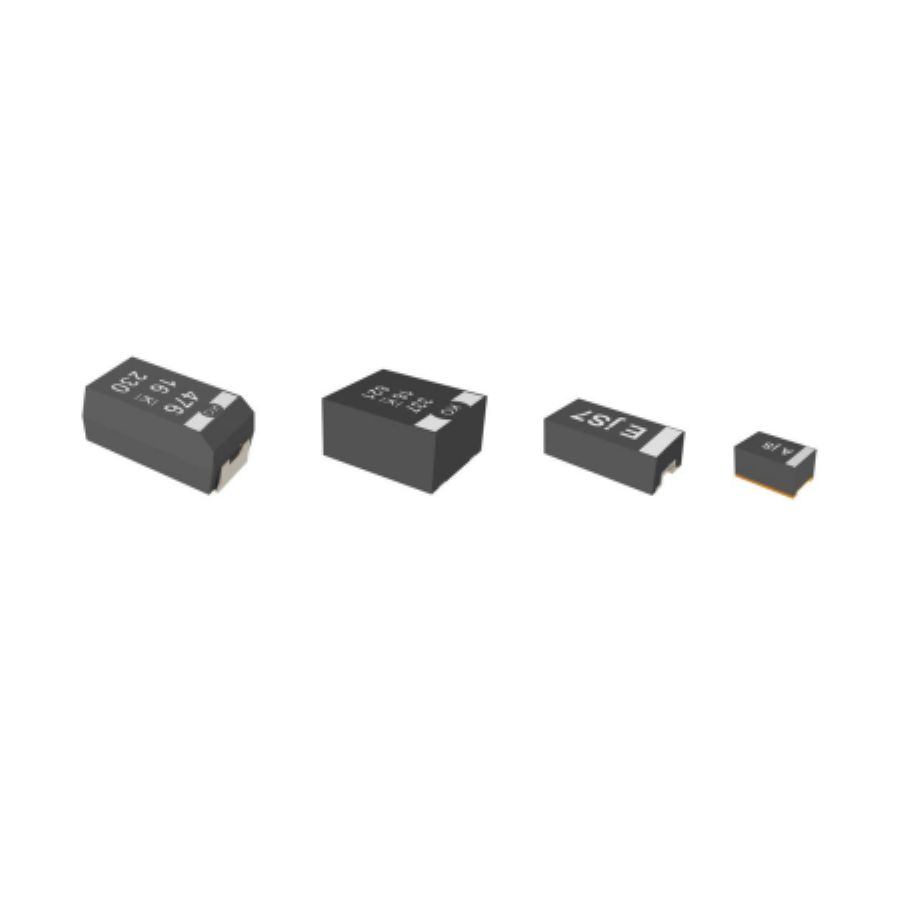

T520D337M006ATE015
Manufacturer:
KEMET
Mfr.Part #:
T520D337M006ATE015
Datasheet:
Description:
Polymer Capacitors 2917(7343 Metric) SMD/SMT 330 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 15 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.8 A |
| Height - Seated (Max) | 3.1 mm |
| Length | 7.3 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Number of Pins | 2 |
| Leakage Current | 208 µA |
| Dissipation Factor | 10 % |
| Height | 2.8 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210050 |
Stock: 171
Distributors
pcbx
pcbxUnit Price$1.11397
Ext.Price$1.11397
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.11397 | $1.11397 |
| 10 | $0.59760 | $5.97600 |
| 25 | $0.58239 | $14.55975 |
| 50 | $0.56757 | $28.37850 |
| 100 | $0.55314 | $55.31400 |
| 300 | $0.51323 | $153.96900 |
| 500 | $0.47620 | $238.10000 |
| 1000 | $0.44114 | $441.14000 |
| 3000 | $0.42680 | $1280.40000 |
| 5000 | $0.41293 | $2064.65000 |
| 10000 | $0.39669 | $3966.90000 |
