T591D336M025ATE060
Manufacturer:
KEMET
Mfr.Part #:
T591D336M025ATE060
Datasheet:
Description:

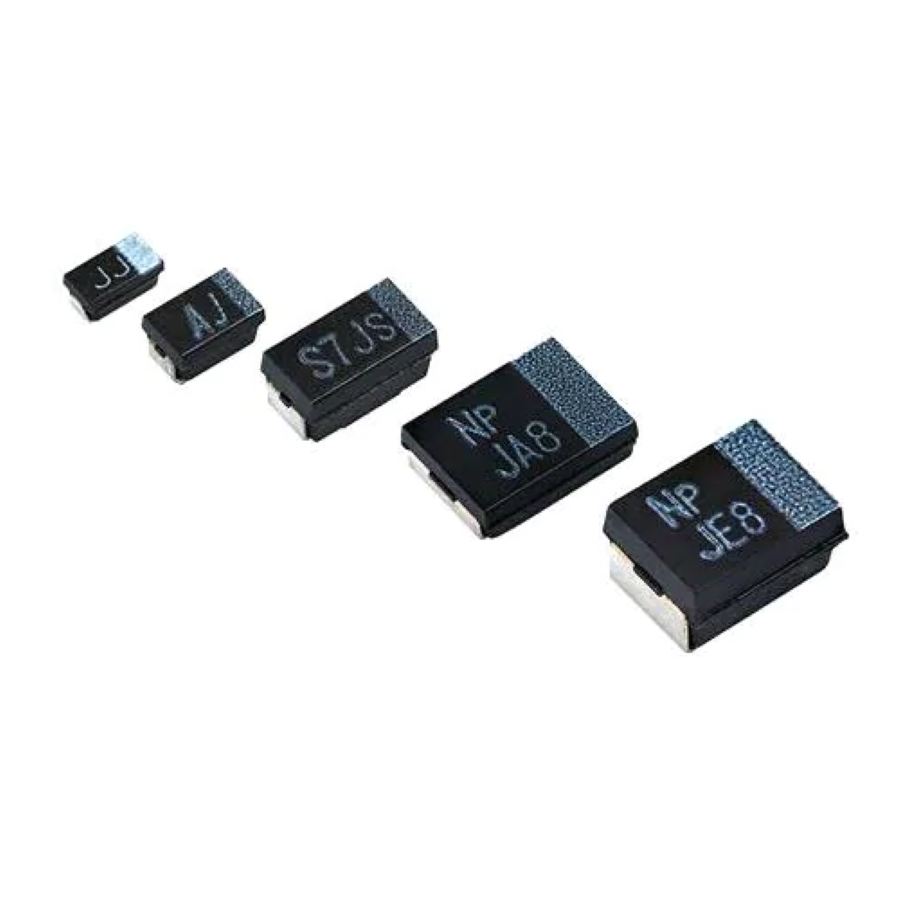

Polymer Capacitors 2917(7343 Metric) SMD/SMT 33 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 33 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 60 mΩ |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 3.1 mm |
| Length | 7.2898 mm |
| Width | 4.2926 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Leakage Current | 82.5 µA |
| Dissipation Factor | 10 % |
| Height | 2.8 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Depth | 4.3 mm |
| RoHS | Compliant |
| Lead Pitch | 3.8 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
Stock: 193
Distributors
pcbx
pcbxUnit Price$1.41406
Ext.Price$1.41406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.41406 | $1.41406 |
| 10 | $0.78824 | $7.88240 |
| 25 | $0.76896 | $19.22400 |
| 50 | $0.75015 | $37.50750 |
| 100 | $0.73182 | $73.18200 |
| 300 | $0.67997 | $203.99100 |
| 500 | $0.63180 | $315.90000 |
| 1000 | $0.59332 | $593.32000 |
| 3000 | $0.57377 | $1721.31000 |
| 5000 | $0.55485 | $2774.25000 |
