KF126-5.0-2P
Manufacturer:
Kefa
Mfr.Part #:
KF126-5.0-2P
Datasheet:
Description:

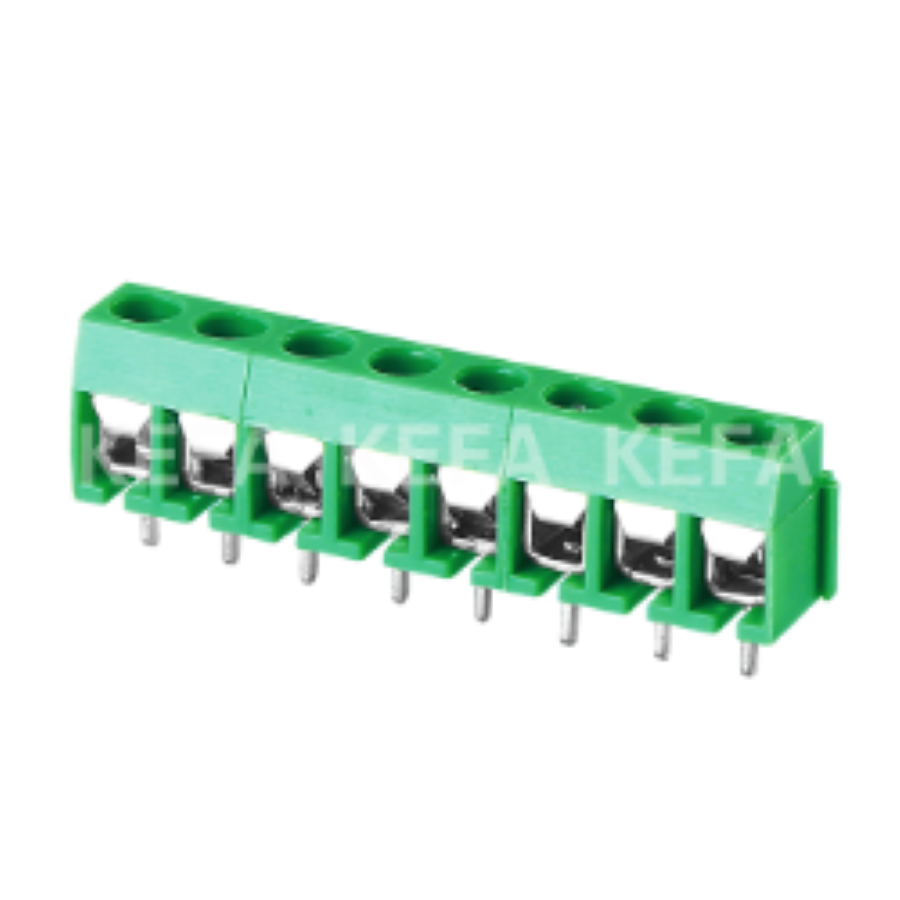

Terminal Blocks Through Hole 2 5 mm 8 A 250 V 26 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Voltage | 250 V |
| Pitch | 5 mm |
| Current Rating | 8 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Wire/Cable Gauge | 26 AWG to 14 AWG |
| Thread Size | M2.5 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 14 AWG |
| Current Rating (IEC) | 18 A |
| Voltage Rating (IEC) | 250 V |
Stock: 5374
Distributors
pcbx
pcbxUnit Price$0.07862
Ext.Price$0.07862
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07862 | $0.07862 |
| 10 | $0.06956 | $0.69560 |
| 50 | $0.06154 | $3.07700 |
| 100 | $0.05627 | $5.62700 |
| 500 | $0.05145 | $25.72500 |
| 1000 | $0.04705 | $47.05000 |
| 3000 | $0.04321 | $129.63000 |
| 5000 | $0.03969 | $198.45000 |
