KF128-2.54-3P
Manufacturer:
Kefa
Mfr.Part #:
KF128-2.54-3P
Datasheet:
Description:

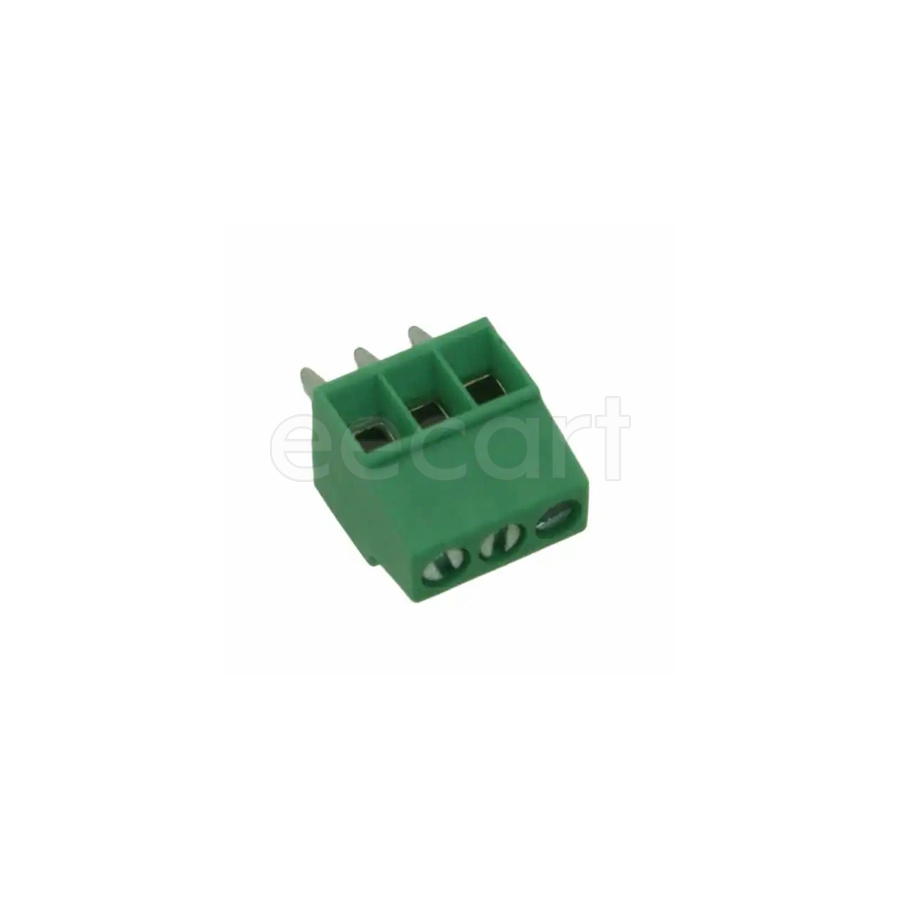

Terminal Blocks Through Hole 3 2.54 mm 6 A 150 V 26 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 150 V |
| RoHS | Compliant |
| Voltage | 130 V |
| Pitch | 2.54 mm |
| Current Rating | 6 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Wire/Cable Gauge | 18 AWG to 26 AWG |
| Thread Size | M1.6 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 18 AWG |
| Current Rating (IEC) | 10 A |
| Voltage Rating (IEC) | 160 V |
Stock: 2682
Distributors
pcbx
pcbxUnit Price$0.32851
Ext.Price$0.32851
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32851 | $0.32851 |
| 10 | $0.29051 | $2.90510 |
| 50 | $0.25690 | $12.84500 |
| 100 | $0.22083 | $22.08300 |
| 500 | $0.18983 | $94.91500 |
| 1000 | $0.17090 | $170.90000 |
| 3000 | $0.15386 | $461.58000 |
