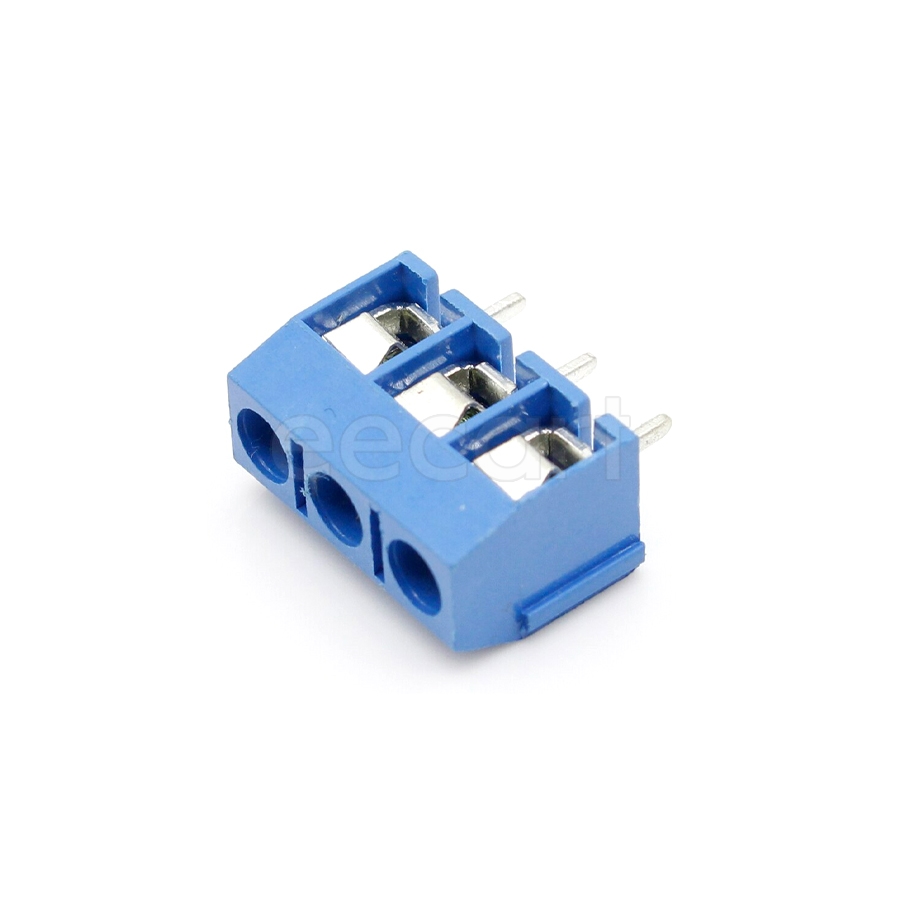

KF301-5.0-3P
Manufacturer:
Kefa
Mfr.Part #:
KF301-5.0-3P
Datasheet:
Description:
Terminal Blocks Through Hole 3 5 mm 16 A 300 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Tin |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Bag |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Pitch | 5 mm |
| Current Rating | 16 A |
| Color | Blue |
| Wire/Cable Gauge | 14 AWG to 22 AWG |
| Thread Size | M2.5 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
| Current Rating (IEC) | 17 A |
| Voltage Rating (IEC) | 250 V |
Stock: 6996
Distributors
pcbx
pcbxUnit Price$0.11818
Ext.Price$0.11818
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11818 | $0.11818 |
| 10 | $0.10442 | $1.04420 |
| 50 | $0.09226 | $4.61300 |
| 100 | $0.08253 | $8.25300 |
| 500 | $0.07383 | $36.91500 |
| 1000 | $0.06605 | $66.05000 |
| 3000 | $0.05909 | $177.27000 |
