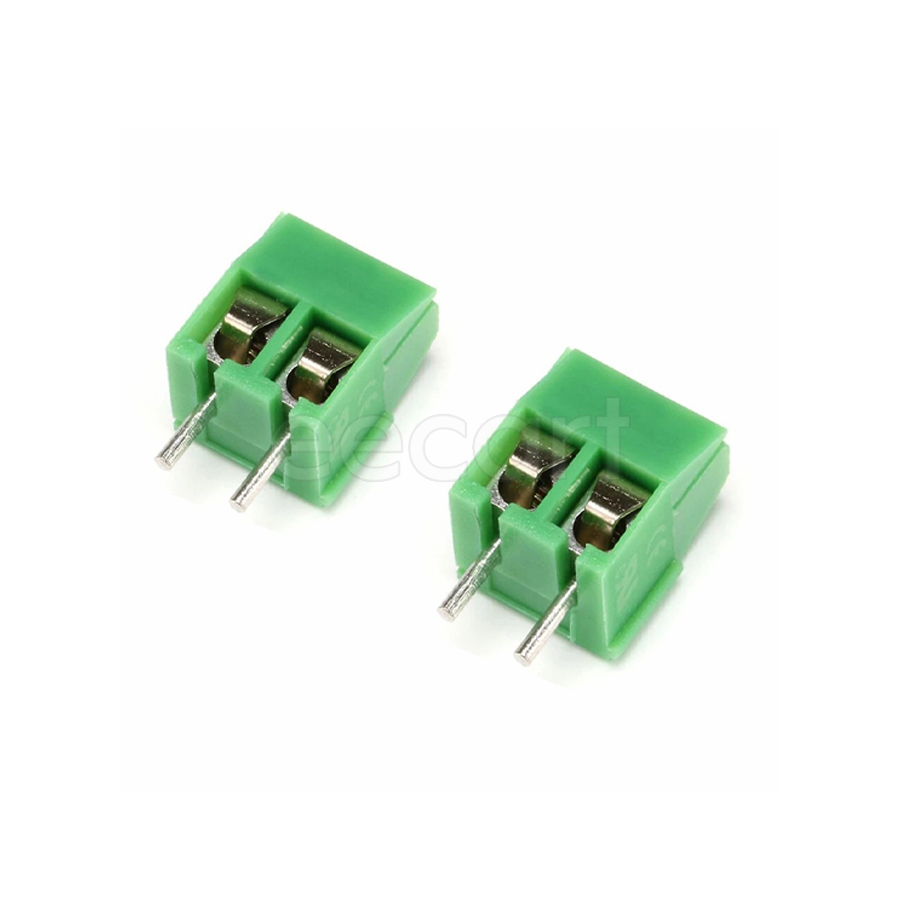

KF350-3.5-2P
Manufacturer:
Kefa
Mfr.Part #:
KF350-3.5-2P
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.5 mm 7 A 300 V 24 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Pitch | 3.5 mm |
| Current Rating | 7 A |
| Orientation | |
| Color | Green |
| Gender | Female |
| Connector Type | |
| Wire/Cable Gauge | 24 AWG to 18 AWG |
| Thread Size | M2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Mating Post Length | |
| Termination Post Length | |
| Connection Method | Screw |
| Wire Gauge Range | 24 AWG to 18 AWG |
| Voltage Rating (IEC) | 300 V |
| Current Rating (IEC) | 10 A |
Stock: 10061
Distributors
pcbx
pcbxUnit Price$0.10560
Ext.Price$0.10560
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10560 | $0.10560 |
| 10 | $0.09504 | $0.95040 |
| 50 | $0.08554 | $4.27700 |
| 100 | $0.07665 | $7.66500 |
| 500 | $0.06868 | $34.34000 |
| 1000 | $0.06205 | $62.05000 |
| 3000 | $0.05606 | $168.18000 |
