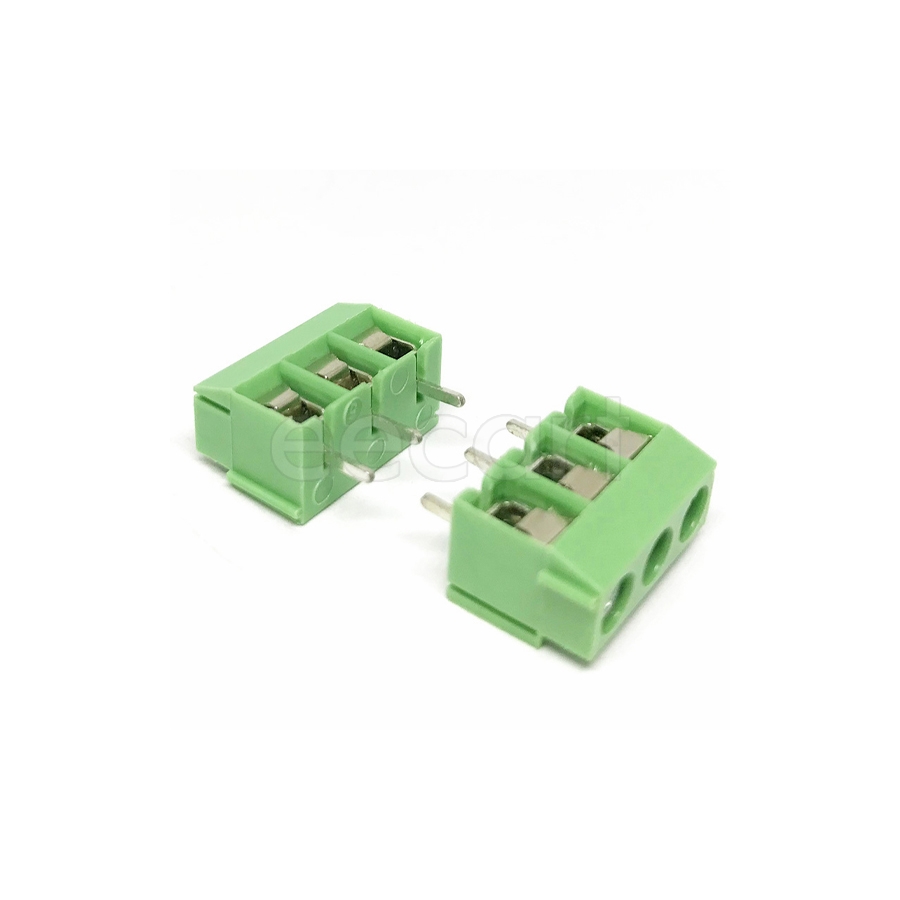

KF350-3.5-3P
Manufacturer:
Kefa
Mfr.Part #:
KF350-3.5-3P
Datasheet:
Description:
Terminal Blocks Through Hole 3 3.5 mm 7 A 300 V 24 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Pitch | 3.5 mm |
| Current Rating | 7 A |
| Orientation | |
| Color | Green |
| Wire/Cable Gauge | 24 AWG to 18 AWG |
| Thread Size | M2 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 24 AWG to 18 AWG |
| Current Rating (IEC) | 10 A |
| Voltage Rating (IEC) | 300 V |
Stock: 878
Distributors
pcbx
pcbxUnit Price$0.14362
Ext.Price$0.14362
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14362 | $0.14362 |
| 10 | $0.12684 | $1.26840 |
| 50 | $0.11203 | $5.60150 |
| 100 | $0.09986 | $9.98600 |
| 500 | $0.08901 | $44.50500 |
| 1000 | $0.07935 | $79.35000 |
| 3000 | $0.07336 | $220.08000 |
| 5000 | $0.06782 | $339.10000 |
