KP-2012MGC
Manufacturer:
Kingbright
Mfr.Part #:
KP-2012MGC
Datasheet:
Description:

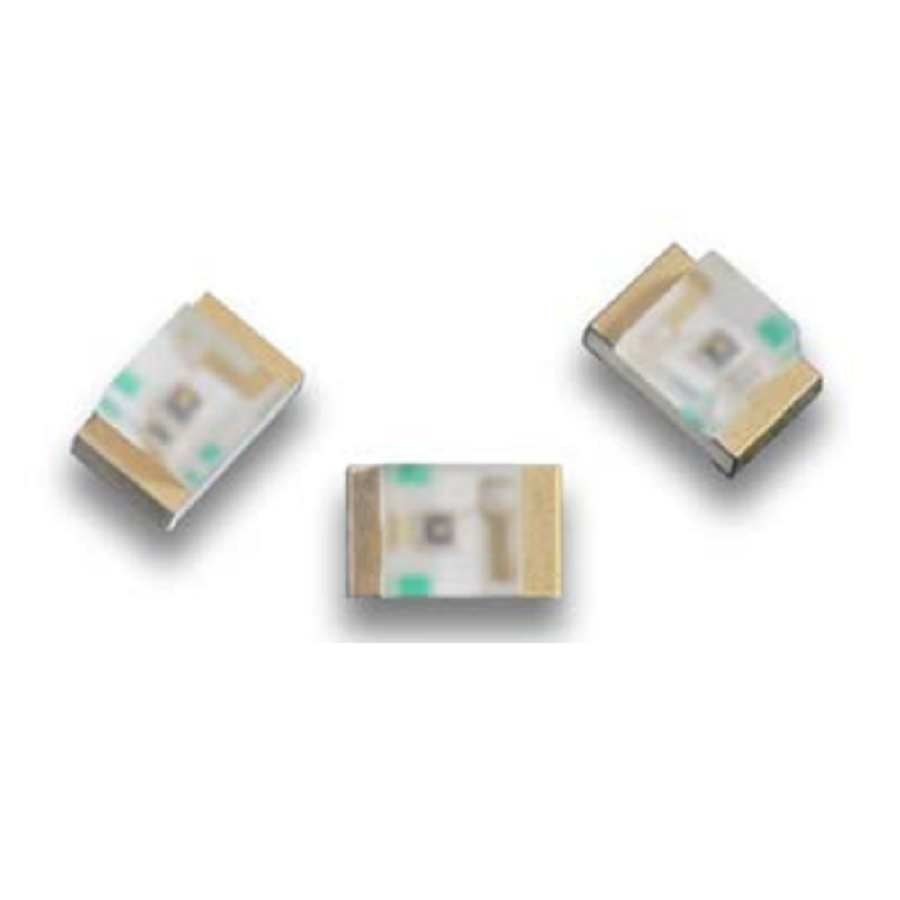

LEDs 0805(2012 Metric) SMD/SMT Green 568 nm 20 mA 2.1 V
| Parameter | Value |
|---|---|
| Width | 2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 1.1 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Forward Current | 20 mA |
| Forward Voltage | 2.1 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Colorless, Diffused, Rectangular |
| Luminous Intensity | 70 mcd |
| Power Dissipation | 75 mW |
| Number of LEDs | 1 |
| Viewing Angle | 120 ° |
| Wavelength | 570 nm |
| Lens Color | Clear |
| Peak Wavelength | 574 nm |
| Dominant Wavelength/CCT (K) | 568 nm |
| Reverse Voltage | 5 V |
Stock: 1255
Distributors
pcbx
pcbxUnit Price$0.29904
Ext.Price$0.29904
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29904 | $0.29904 |
| 10 | $0.26521 | $2.65210 |
| 50 | $0.23520 | $11.76000 |
| 100 | $0.20321 | $20.32100 |
| 500 | $0.17557 | $87.78500 |
| 1000 | $0.16368 | $163.68000 |
| 3000 | $0.15259 | $457.77000 |
