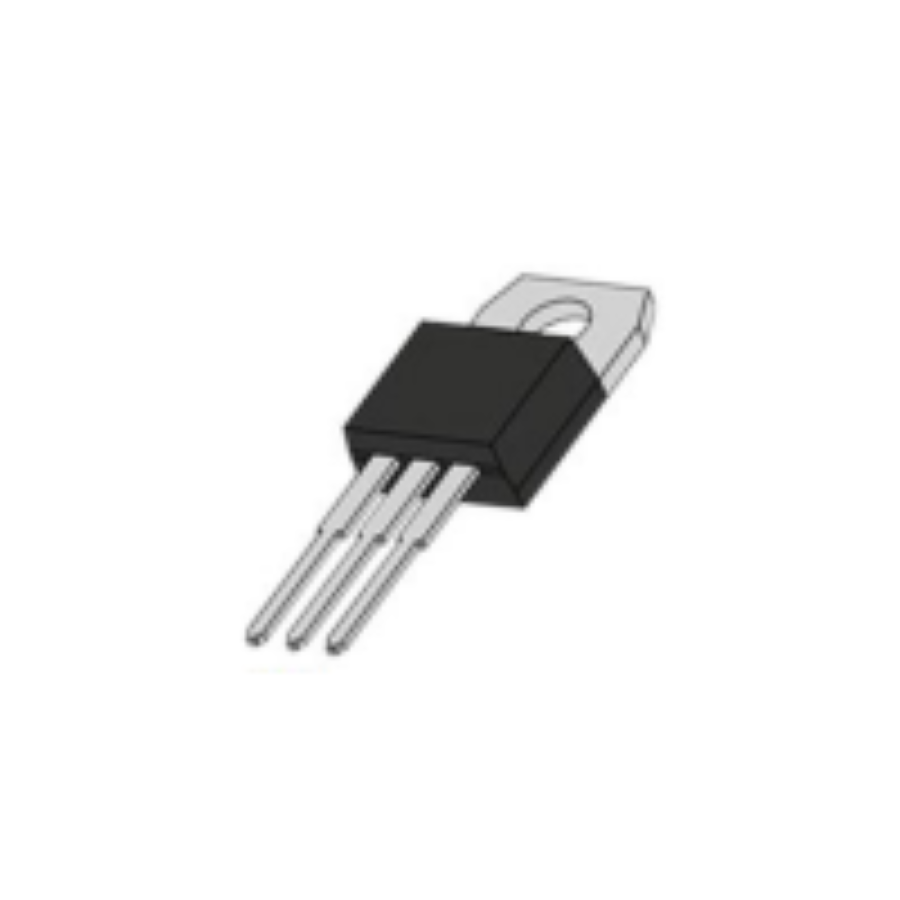

BTA20-800B
Manufacturer:
KY
Mfr.Part #:
BTA20-800B
Datasheet:
Description:
SCRs TO-220A Through Hole Rated Repetitive Off-State Voltage VDRM:800 V Off-State Leakage Current @ VDRM IDRM:3 mA Hold Current:80 mA Forward Voltage:1.55 V
| Parameter | Value |
|---|---|
| Min Operating Temperature | -40 °C |
| Gate Trigger Current - Igt | 100 mA |
| Max Operating Temperature | 125 °C |
| Packaging | Tube |
| RoHS | Compliant |
| On-State RMS Current - It RMS | 25 A |
| Rated Repetitive Off-State Voltage VDRM | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Hold Current | 80 mA |
| Forward Voltage | 1.55 V |
| Off-State Leakage Current @ VDRM IDRM | 3 mA |
Stock: 167
Distributors
pcbx
pcbxUnit Price$0.42701
Ext.Price$0.42701
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42701 | $0.42701 |
| 10 | $0.34109 | $3.41090 |
| 25 | $0.30425 | $7.60625 |
| 50 | $0.27139 | $13.56950 |
| 100 | $0.22776 | $22.77600 |
| 300 | $0.21703 | $65.10900 |
| 500 | $0.20680 | $103.40000 |
| 1000 | $0.19478 | $194.78000 |
