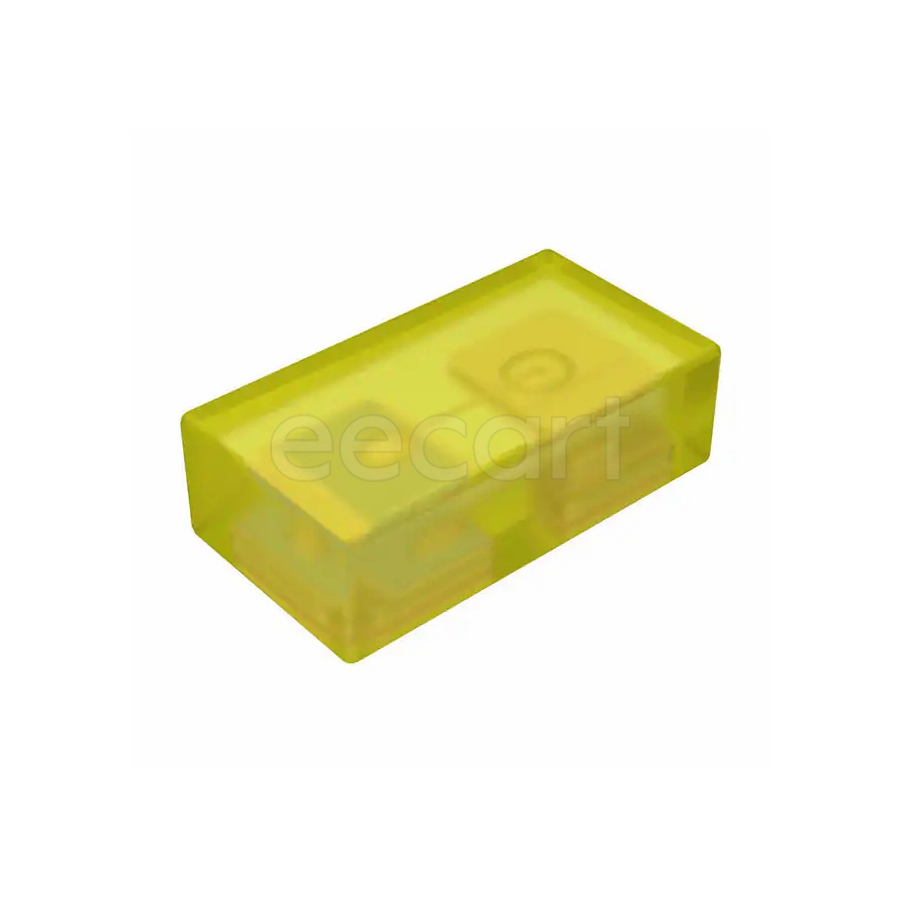

APG0603SURC-TT
Manufacturer:
Kingbright
Mfr.Part #:
APG0603SURC-TT
Datasheet:
Description:
LEDs 0201(0603 Metric) SMD/SMT Red 631 nm 10 mA 1.92 V
| Parameter | Value |
|---|---|
| Length | 650 µm |
| Width | 350 µm |
| Height | 250 µm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Forward Voltage | 1.92 V |
| Color | Red |
| Luminous Intensity | 30 mcd |
| Viewing Angle | 140 ° |
| Wavelength | 631 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 631 nm |
| Test Current | 10 mA |
| Schedule B | 8541402000 |
| Forward Current | 10 mA |
| Illumination Color | Red |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Lens Style | Rectangle with Flat Top |
Stock: 229
Distributors
pcbx
pcbxUnit Price$0.23731
Ext.Price$0.23731
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23731 | $0.23731 |
| 10 | $0.20958 | $2.09580 |
| 50 | $0.18509 | $9.25450 |
| 100 | $0.15877 | $15.87700 |
| 500 | $0.13619 | $68.09500 |
| 1000 | $0.12958 | $129.58000 |
| 3000 | $0.12329 | $369.87000 |
| 5000 | $0.11731 | $586.55000 |
