APT2012LSECK/J3-PRV
Manufacturer:
Kingbright
Mfr.Part #:
APT2012LSECK/J3-PRV
Datasheet:
Description:

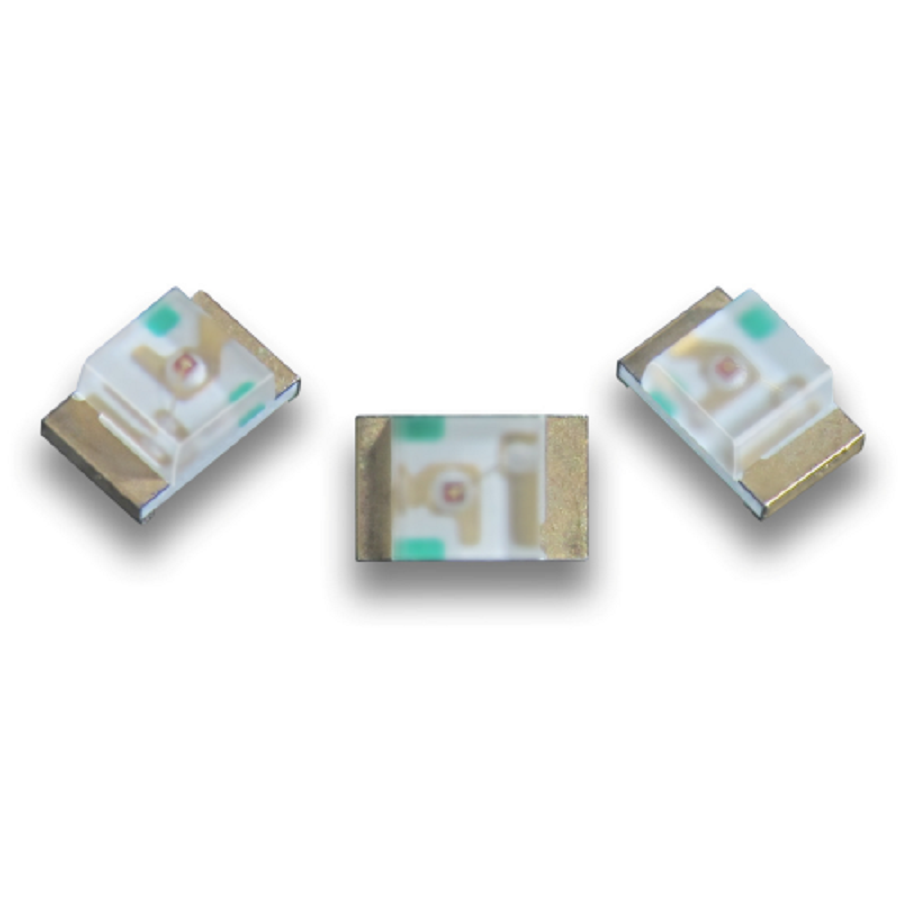

LEDs 0805(2012 Metric) SMD/SMT Red 625 nm 2 mA 1.8 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Height | 750 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 2 mA |
| Forward Voltage | 1.8 V |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Rectangle with Flat Top |
| Luminous Intensity | 40 mcd |
| Viewing Angle | 120 ° |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 625 nm |
| Test Current | 2 mA |
Stock: 222
Distributors
pcbx
pcbxUnit Price$0.30547
Ext.Price$0.30547
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30547 | $0.30547 |
| 10 | $0.26974 | $2.69740 |
| 50 | $0.23818 | $11.90900 |
| 100 | $0.20421 | $20.42100 |
| 500 | $0.17509 | $87.54500 |
| 1000 | $0.16245 | $162.45000 |
| 3000 | $0.15072 | $452.16000 |
