APTD3216SYCK
Manufacturer:
Kingbright
Mfr.Part #:
APTD3216SYCK
Datasheet:
Description:

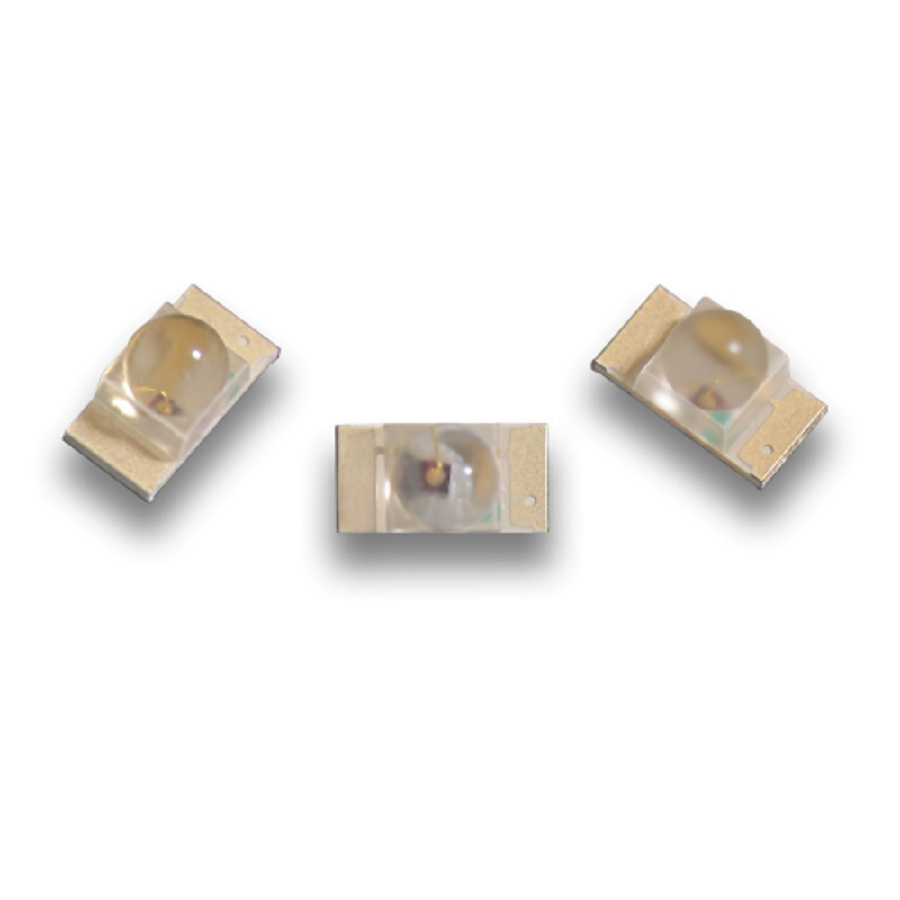

LEDs 1206(3216 Metric) SMD/SMT Yellow 590 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 2 |
| Height | 1.8 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Color | Yellow |
| Illumination Color | Yellow |
| Lens Style | Clear, Dome, Round |
| Luminous Intensity | 800 mcd |
| Power Dissipation | 75 mW |
| Number of LEDs | 1 |
| Viewing Angle | 40 ° |
| Wavelength | 590 nm |
| Lens Transparency | Clear |
| Lens Color | Clear |
| Dominant Wavelength/CCT (K) | 590 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Max Junction Temperature (Tj) | 115 °C |
| Schedule B | 8541402000 |
Stock: 1539
Distributors
pcbx
pcbxUnit Price$0.17770
Ext.Price$0.17770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17770 | $0.17770 |
| 10 | $0.15695 | $1.56950 |
| 50 | $0.13862 | $6.93100 |
| 100 | $0.11893 | $11.89300 |
| 500 | $0.10204 | $51.02000 |
| 1000 | $0.09471 | $94.71000 |
| 3000 | $0.08791 | $263.73000 |
