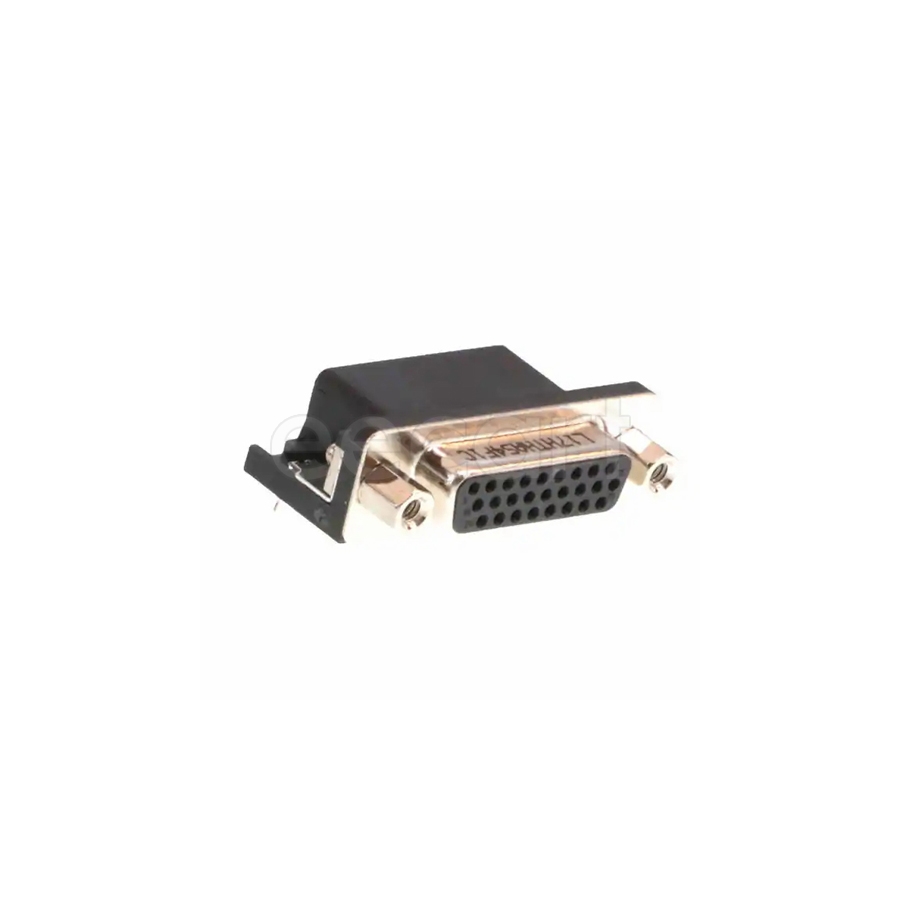

L17HTHAS4F1C
Manufacturer:
Amphenol
Mfr.Part #:
L17HTHAS4F1C
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:26 Solder Receptacle
| Parameter | Value |
|---|---|
| Length | 39.24 mm |
| Termination | Solder |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating | 300 V |
| Depth | 22.22 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | Thermoplastic, Glass Filled |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.29 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 26 |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 26 |
| Body Material | Steel |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Supply Voltage (AC) | 600 V |
| Shell Material | Steel |
| Packaging | Tray |
| RoHS | Compliant |
Stock: 1623
Distributors
pcbx
pcbxUnit Price$2.04670
Ext.Price$2.04670
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.04670 | $2.04670 |
| 10 | $1.13278 | $11.32780 |
| 25 | $1.10713 | $27.67825 |
| 50 | $1.08206 | $54.10300 |
| 100 | $1.05755 | $105.75500 |
| 300 | $1.03858 | $311.57400 |
| 500 | $1.01993 | $509.96500 |
