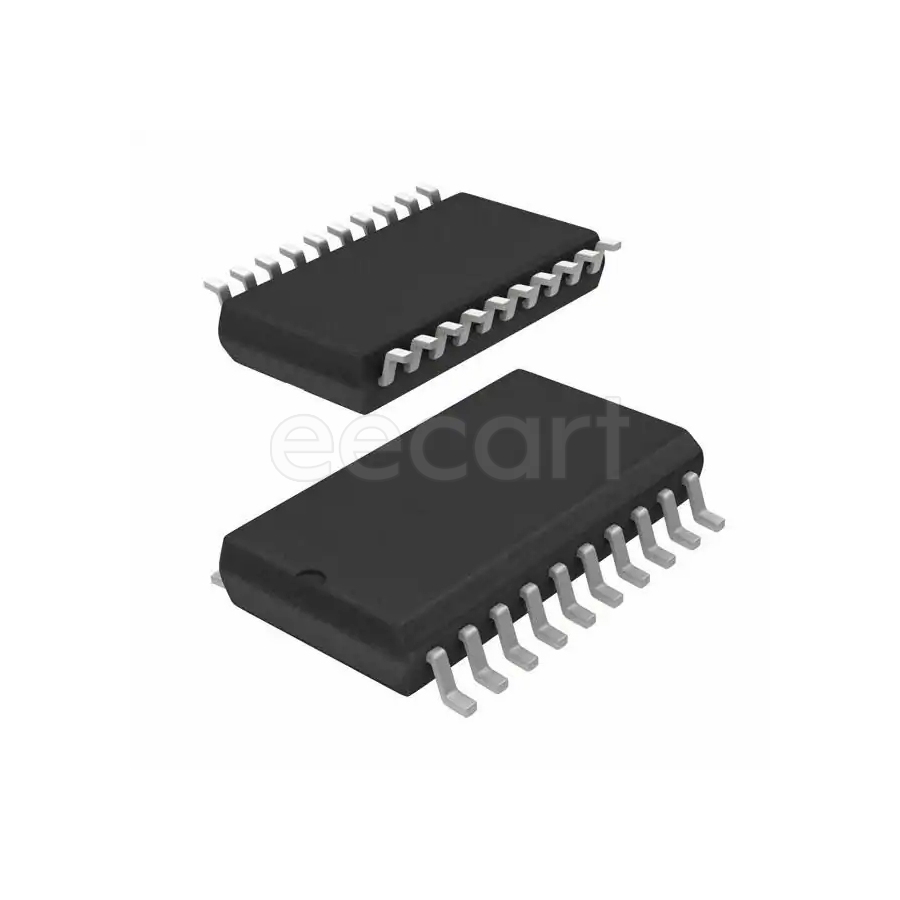

L4949EPTR-E
Manufacturer:
STMicroelectronics
Mfr.Part #:
L4949EPTR-E
Datasheet:
Description:
Voltage Regulators - Linear SOIC-20 SMD/SMT Positive Fixed 5 V 100 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Radiation Hardening | No |
| Dropout Voltage | 300 mV |
| Min Input Voltage | 6 V |
| Output Current | 100 mA |
| Output Voltage | 5 V |
| Output Type | Fixed |
| Accuracy | 1 % |
| Max Output Current | 100 mA |
| Quiescent Current | 300 µA |
| Max Input Voltage | 28 V |
| Number of Outputs | 1 |
| Min Output Voltage | 4.95 V |
| Min Current Limit | 120 mA |
| Number of Regulators | 1 |
| Output Voltage Accuracy | 1 % |
| Schedule B | 8542390000 |
| Load Regulation | 30 mV |
| Line Regulation | 20 mV |
| RoHS | Compliant |
| Packaging | Reel |
| Polarity | Positive |
Stock: 5
Distributors
pcbx
pcbxUnit Price$3.11933
Ext.Price$3.11933
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.11933 | $3.11933 |
| 10 | $2.68541 | $26.85410 |
| 25 | $2.50865 | $62.71625 |
| 50 | $2.34353 | $117.17650 |
| 100 | $2.18929 | $218.92900 |
| 300 | $2.12730 | $638.19000 |
| 500 | $2.06707 | $1033.53500 |
| 1000 | $2.01207 | $2012.07000 |
