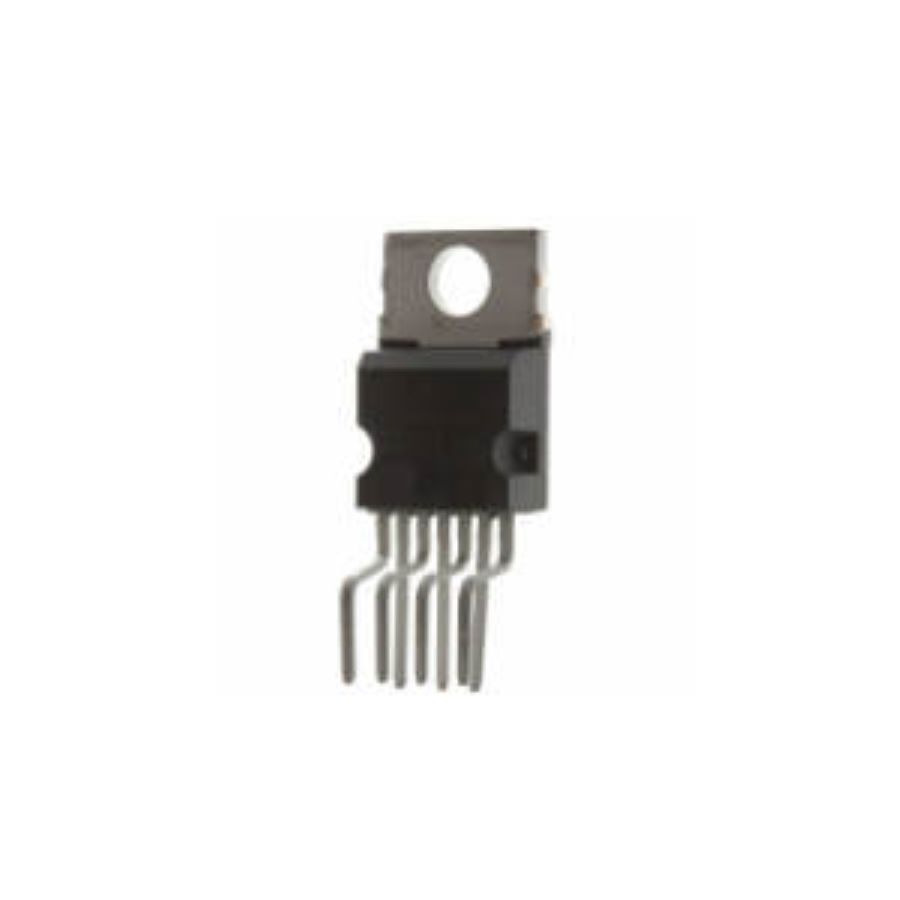

L4960
Manufacturer:
STMicroelectronics
Mfr.Part #:
L4960
Datasheet:
Description:
Voltage Regulators - Switching HEPTAWATT-7 Through Hole Buck Adjustable 5.1 V to 40 V
| Parameter | Value |
|---|---|
| Length | 10.4 mm |
| Width | 4.8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Height | 15.8 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 100 kHz |
| Dropout Voltage | 1.4 V |
| Min Input Voltage | 9 V |
| Output Current | 2.5 A |
| Output Voltage | 5.1 V to 40 V |
| Operating Supply Voltage | 46 V |
| Output Type | Adjustable |
| Lifecycle Status | NRND (Last Updated: 2 months ago) |
| Max Output Current | 2.5 A |
| Number of Channels | 1 |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Buck |
| Switching Frequency | 100 kHz to 150 kHz |
| Max Input Voltage | 46 V |
| Number of Outputs | 1 |
| Efficiency | 90 % |
| Min Output Voltage | 5.1 V |
| Max Output Voltage | 40 V |
| Schedule B | 8542390000 |
| Function | Step-Down |
