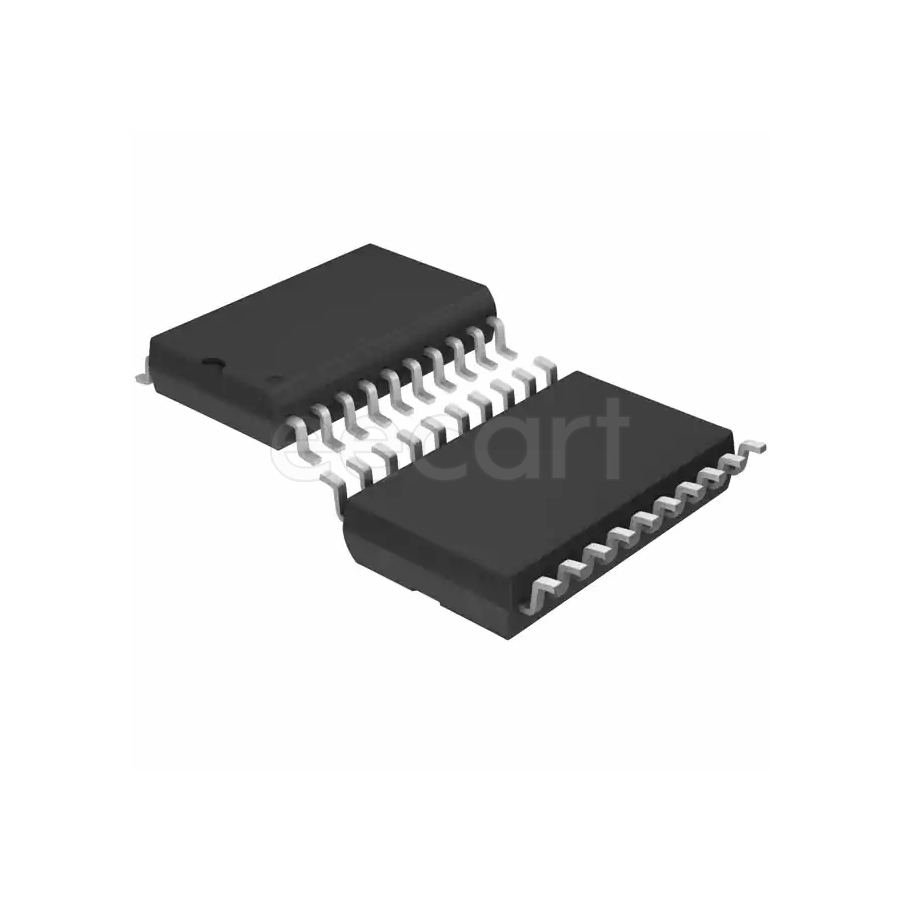

L4973D5.1
Manufacturer:
STMicroelectronics
Mfr.Part #:
L4973D5.1
Datasheet:
Description:
Voltage Regulators - Switching SOIC-20 SMD/SMT Buck Adjustable 50 V
| Parameter | Value |
|---|---|
| Length | 13 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Height | 2.35 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Min Input Voltage | 8 V |
| Output Current | 3.5 A |
| Output Voltage | 50 V |
| Operating Supply Voltage | 55 V |
| Output Type | Adjustable |
| Max Output Current | 3.5 A |
| Number of Channels | 1 |
| Synchronous Rectifier | No |
| Switching Frequency | 300 kHz |
| Max Input Voltage | 55 V |
| Number of Outputs | 1 |
| Efficiency | 90 % |
| Min Output Voltage | 5.1 V |
| Max Output Voltage | 50 V |
| Topology | Buck |
| Function | Step-Down |
| Packaging | Tube |
| Quiescent Current | 2.7 mA |
| RoHS | Compliant |
Stock: 72
Distributors
pcbx
pcbxUnit Price$3.24326
Ext.Price$3.24326
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.24326 | $3.24326 |
| 10 | $3.09245 | $30.92450 |
| 25 | $3.00693 | $75.17325 |
| 50 | $2.92378 | $146.18900 |
