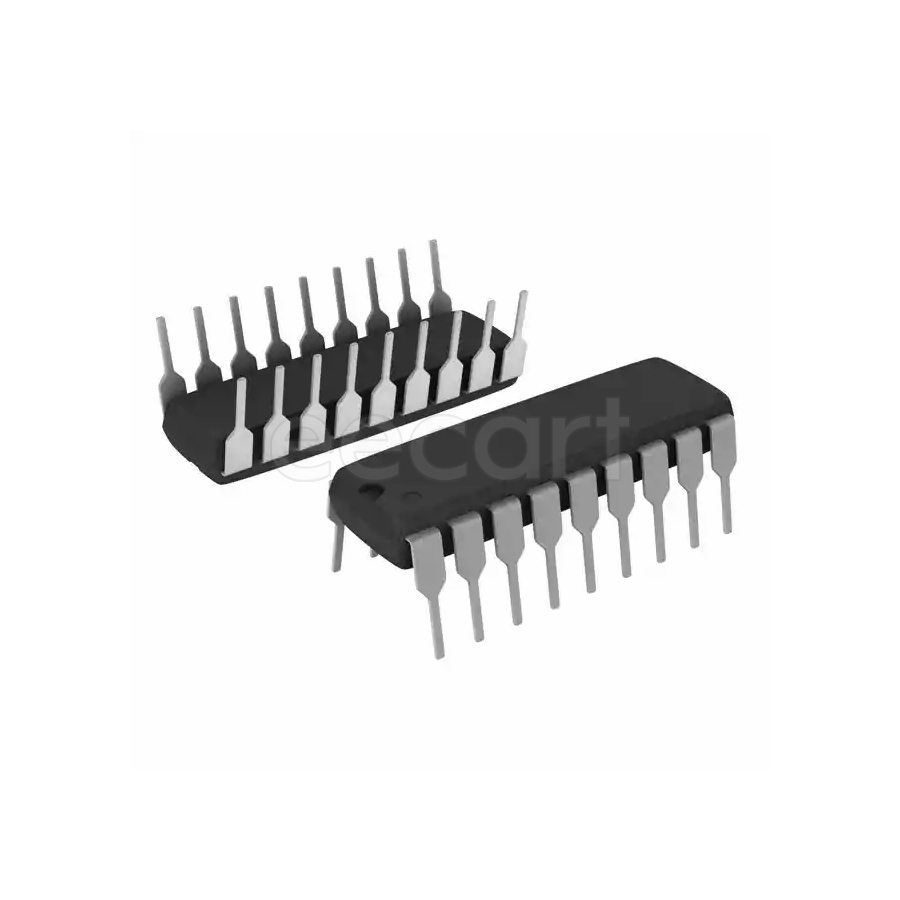

L4973V5.1
Manufacturer:
STMicroelectronics
Mfr.Part #:
L4973V5.1
Datasheet:
Description:
Voltage Regulators - Switching DIP-18 Through Hole Buck Adjustable (Fixed) 5.1 V
| Parameter | Value |
|---|---|
| Length | 24.8 mm |
| Width | 7.1 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 18 |
| Height | 5.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 8 V |
| Output Current | 3.5 A |
| Output Voltage | 5.1 V |
| Operating Supply Voltage | 55 V |
| Output Type | Adjustable (Fixed) |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Output Current | 3.5 A |
| Number of Channels | 1 |
| Quiescent Current | 2.7 mA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Switching Frequency | 100 kHz |
| Max Input Voltage | 55 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 4 mA |
| Efficiency | 90 % |
| Min Output Voltage | 500 mV |
| Max Output Voltage | 50 V |
| Schedule B | 8542390000 |
| Topology | Buck |
| Packaging | Tube |
| Function | Step-Down |
Stock: 5
Distributors
pcbx
pcbxUnit Price$10.83658
Ext.Price$10.83658
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $10.83658 | $10.83658 |
| 10 | $9.38054 | $93.80540 |
| 25 | $8.83273 | $220.81825 |
| 50 | $8.31691 | $415.84550 |
| 100 | $7.83130 | $783.13000 |
