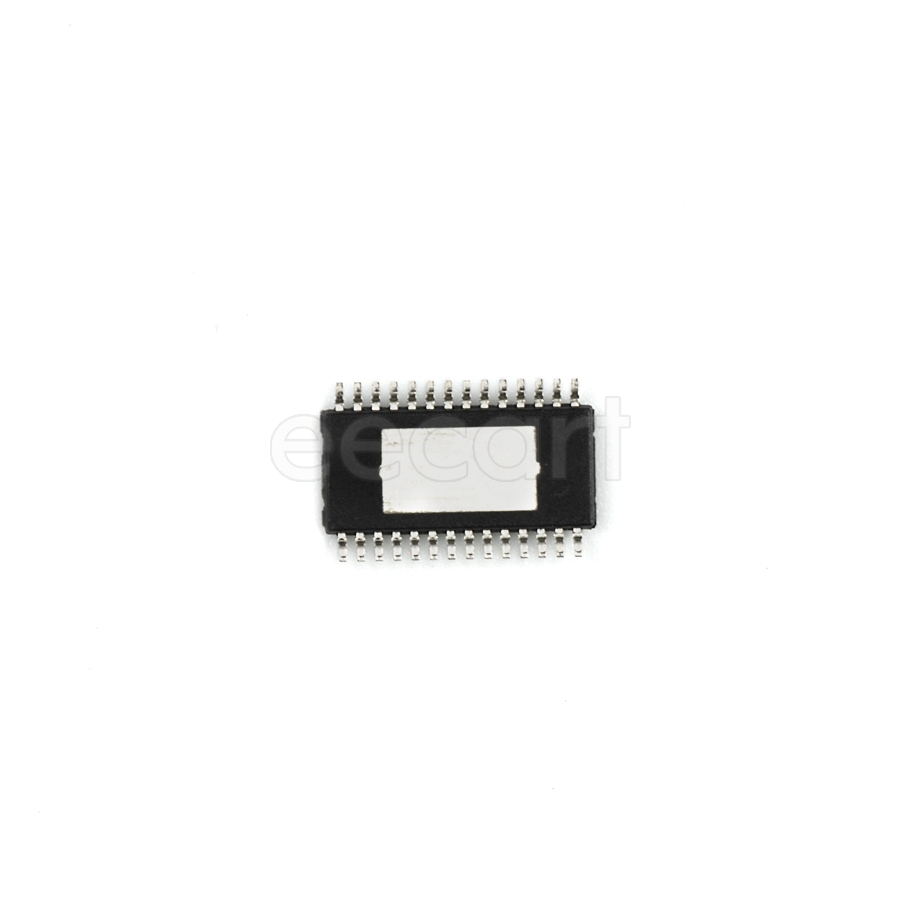

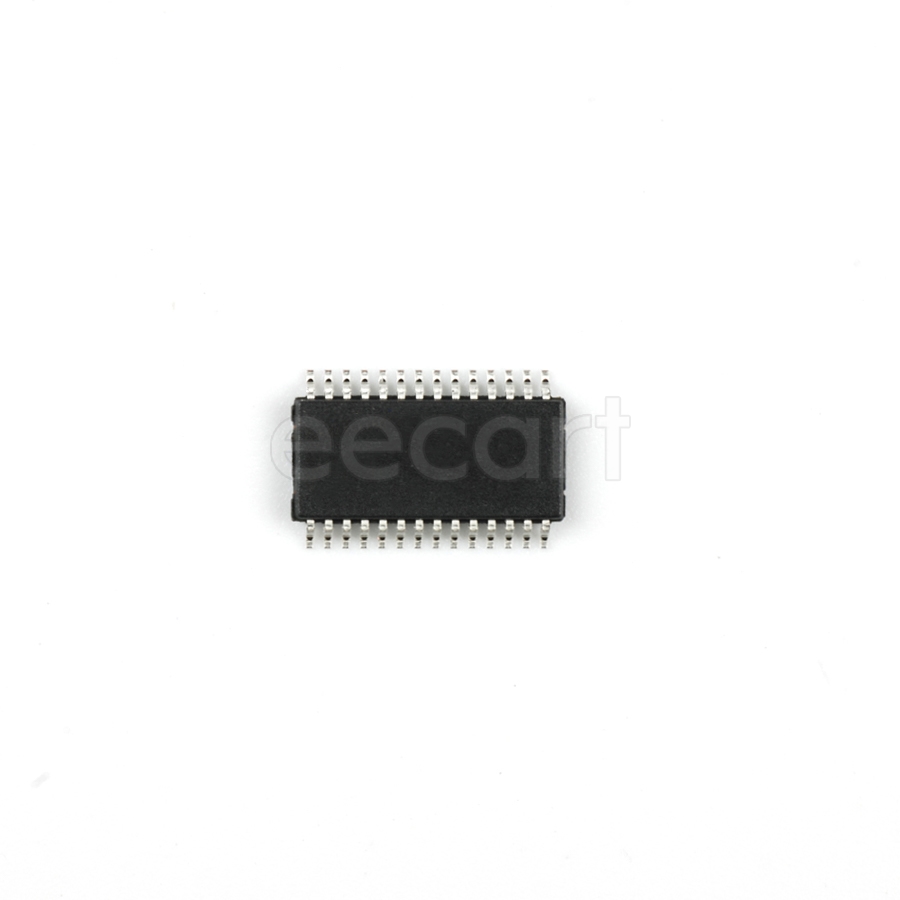

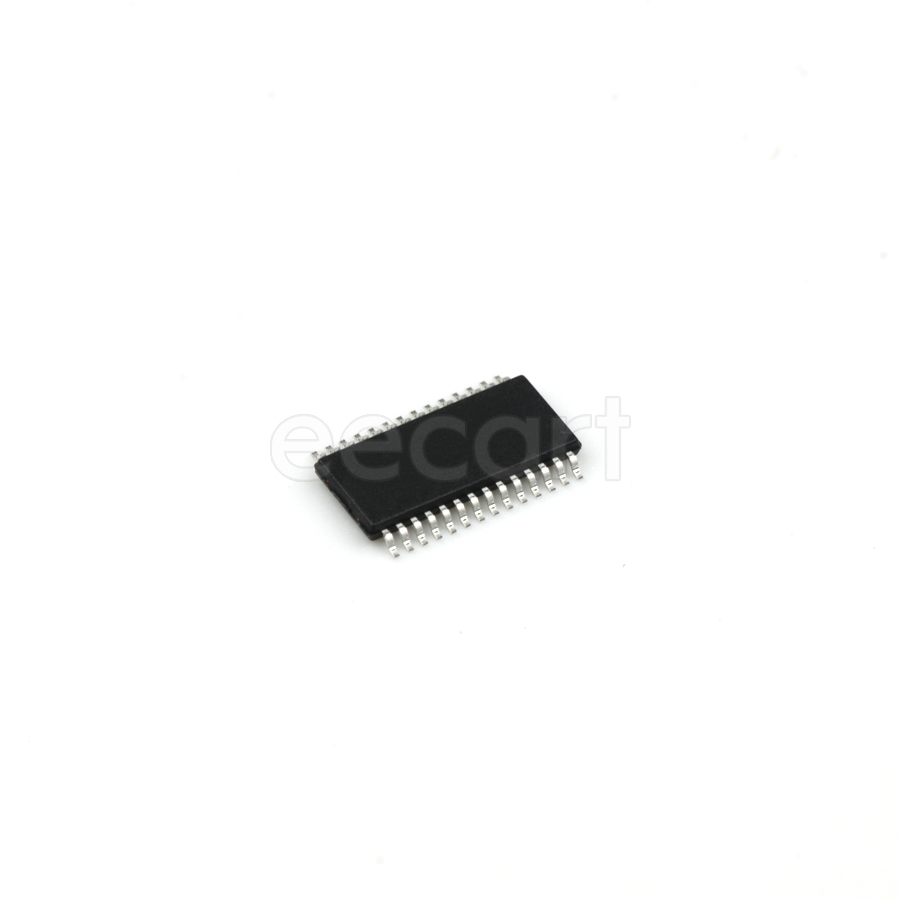

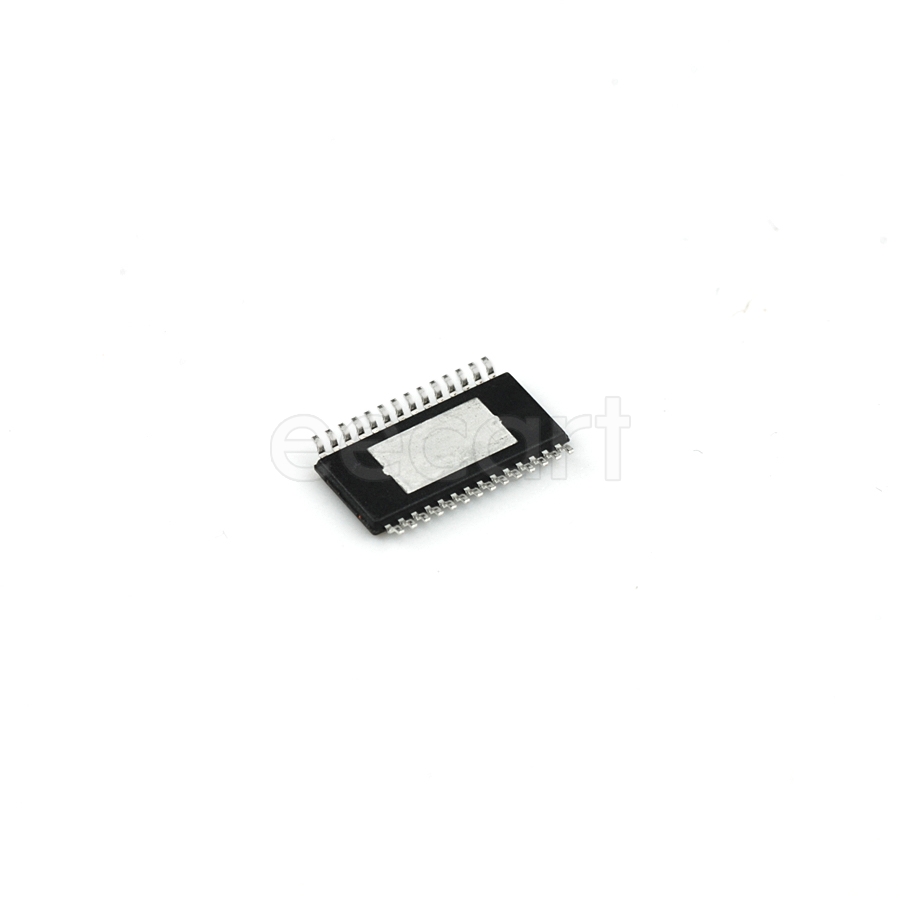

L6474H
Manufacturer:
STMicroelectronics
Mfr.Part #:
L6474H
Datasheet:
Description:
Motor Drivers HTSSOP-28 SMD/SMT SPI Load voltage:8 V to 45 V Half Bridge (4)
| Parameter | Value |
|---|---|
| Length | 9.8 mm |
| Width | 4.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Height | 1.05 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | SPI |
| Output Current | 3 A |
| Output Voltage | 45 V |
| Max Supply Voltage | 45 V |
| Min Supply Voltage | 8 V |
| Max Output Current | 3 A |
| Max Collector Current | 3 A |
| Operating Supply Current | 650 µA |
| Logic Function | AND |
| Switching Frequency | 512 kHz |
| Number of Outputs | 1 |
| Motor Type | Stepper |
| Collector Emitter Voltage (VCEO) | 45 V |
| Operating Supply Voltage | 8 V to 45 V |
| RoHS | Compliant |
| Packaging | Tube |
| Motor Type - Stepper | Bipolar |
| Load Voltage | 8 V to 45 V |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Chemistry/Technology | DMOS |
| Applications | General Purpose |
| Step Resolution | 1 to 1/16 |
Stock: 52
Distributors
pcbx
pcbxUnit Price$2.60410
Ext.Price$2.60410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.60410 | $2.60410 |
| 10 | $2.49341 | $24.93410 |
| 25 | $2.45983 | $61.49575 |
| 50 | $2.42671 | $121.33550 |
| 100 | $2.39406 | $239.40600 |
