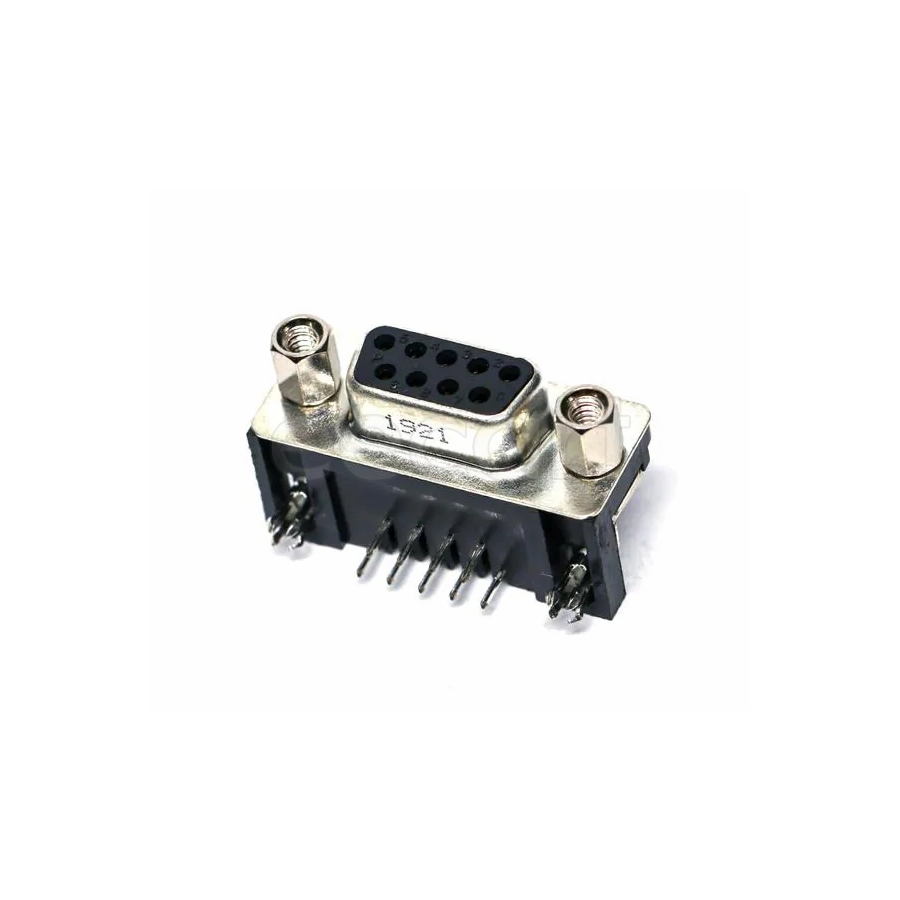

L77SDE09SA4CH4F
Manufacturer:
Amphenol
Mfr.Part #:
L77SDE09SA4CH4F
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Receptacle
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Termination | Solder |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -55 °C |
| Depth | 20.85 mm |
| Dielectric Material | Thermoplastic, Glass Filled |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.74 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 9 |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Supply Voltage (AC) | 250 V |
| Shell Material | Steel |
| Packaging | Tray |
| Voltage Rating | 250 V |
| RoHS | Compliant |
Stock: 191
Distributors
pcbx
pcbxUnit Price$0.89511
Ext.Price$0.89511
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89511 | $0.89511 |
| 10 | $0.85151 | $8.51510 |
| 25 | $0.81390 | $20.34750 |
| 50 | $0.78226 | $39.11300 |
| 100 | $0.74531 | $74.53100 |
| 300 | $0.71011 | $213.03300 |
| 500 | $0.67657 | $338.28500 |
| 1000 | $0.64462 | $644.62000 |
