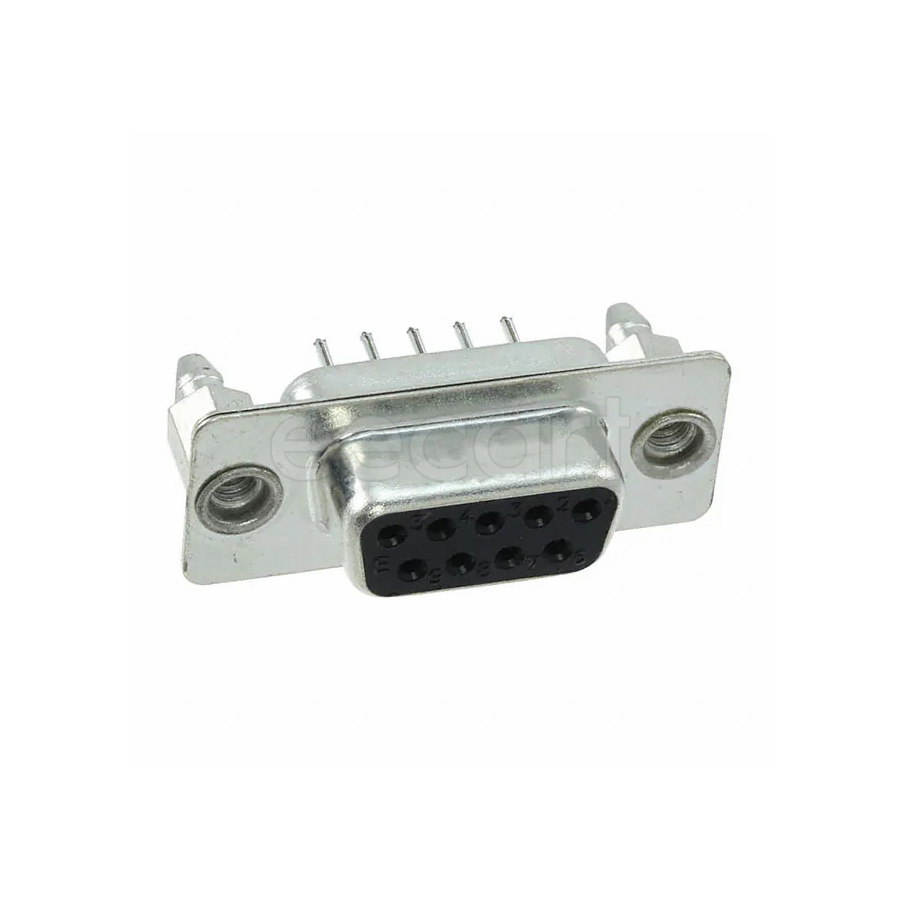

L77SDEH09SOL2RM5
Manufacturer:
Amphenol
Mfr.Part #:
L77SDEH09SOL2RM5
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.89 mm |
| Width | 12.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Depth | 12.55 mm |
| Radiation Hardening | No |
| Dielectric Material | Thermoplastic, Glass Filled |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.74 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 9 |
| Connector Type | D-Sub, Receptacle, Signal |
| Insulation | Insulated |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Insulation Material | Glass |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Plating | Tin |
| Shell Material | Steel |
| Packaging | Tray |
| Voltage Rating | 250 V |
| RoHS | Compliant |
