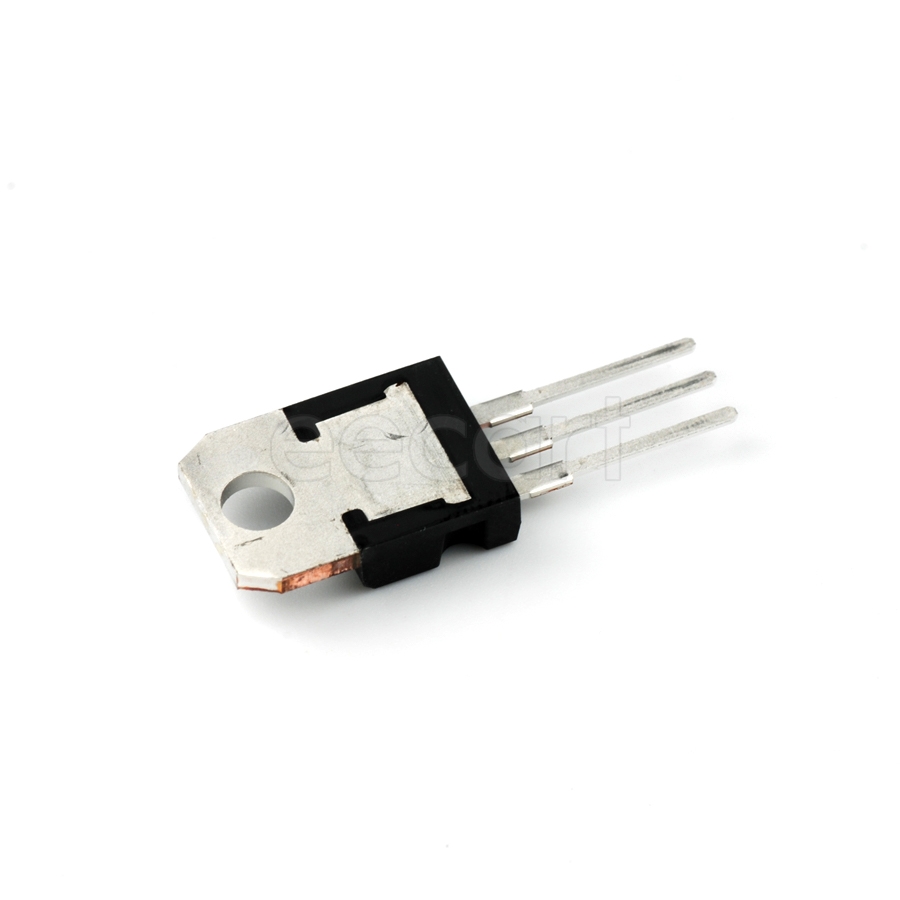

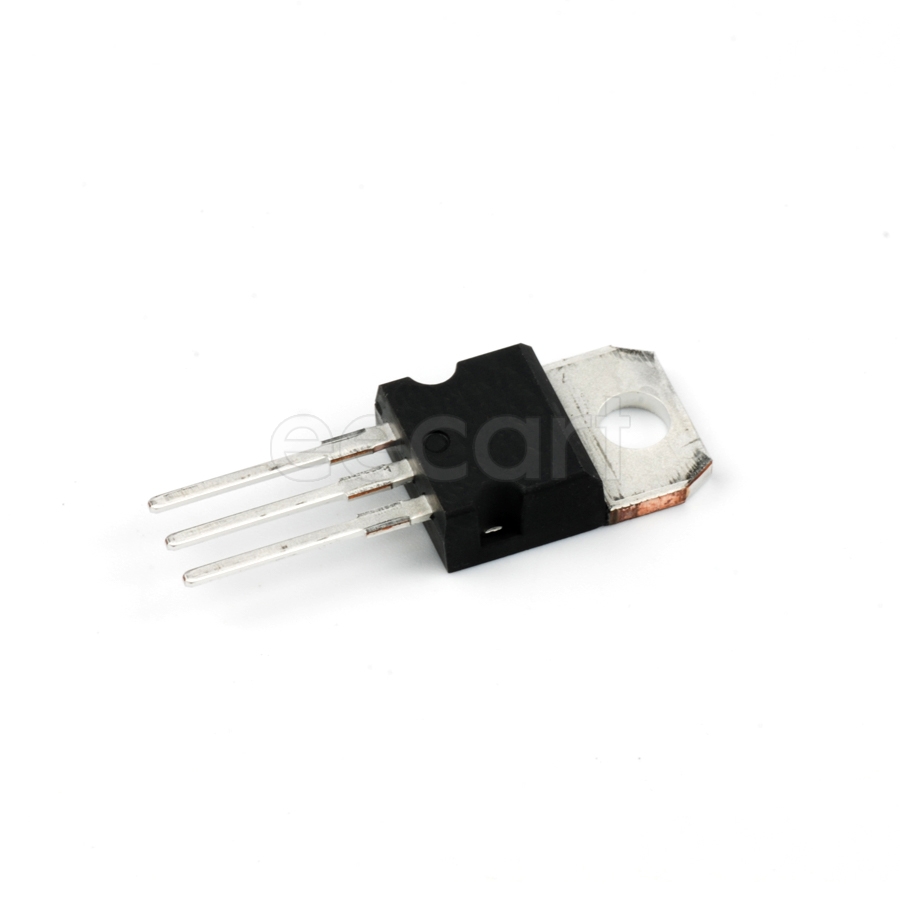

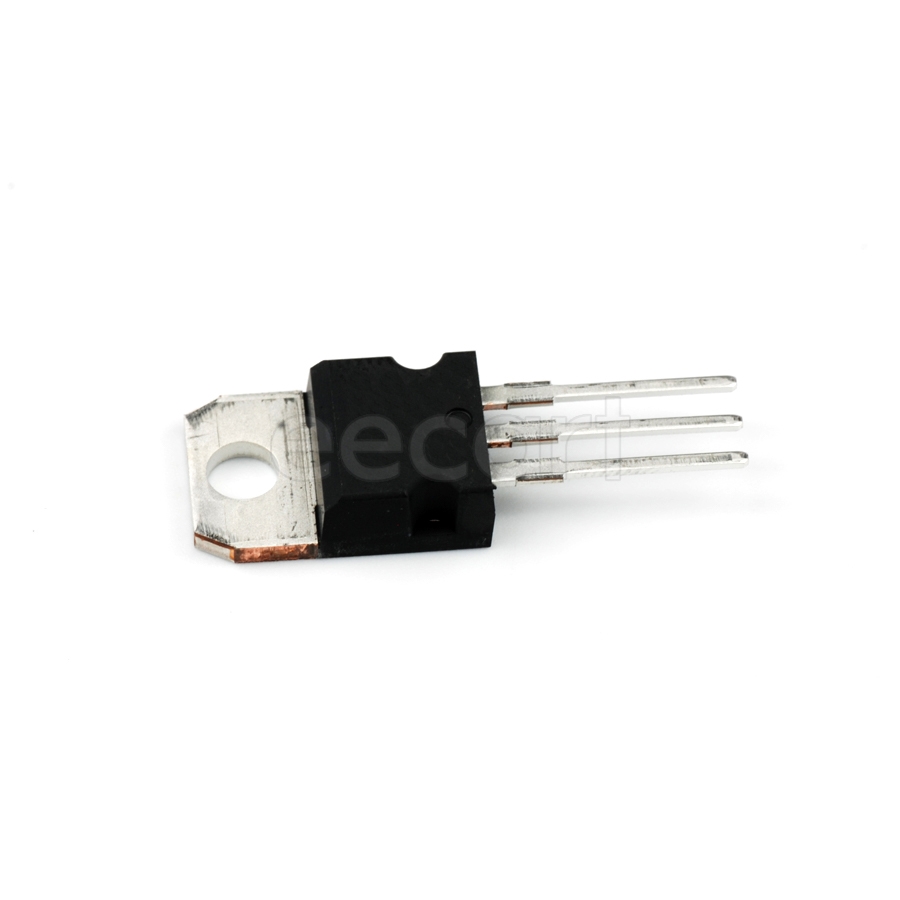

L7812CV
Manufacturer:
STMicroelectronics
Mfr.Part #:
L7812CV
Datasheet:
Description:
Voltage Regulators - Linear TO-220 Through Hole Positive Fixed 12 V 1.5 A
| Parameter | Value |
|---|---|
| Tolerance | |
| Length | 10.4 mm |
| Width | 4.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 3 |
| Height | 9.15 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Positive |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Dropout Voltage | 2 V |
| Output Current | 1.5 A |
| Output Voltage | 12 V |
| Output Type | Fixed |
| Max Output Current | 1.5 A |
| Quiescent Current | 6 mA |
| Max Input Voltage | 35 V |
| Number of Outputs | 1 |
| Min Output Voltage | 11.5 V |
| Nominal Output Voltage | 12 V |
| Max Output Voltage | 12.5 V |
| Power Supply Rejection Ratio (PSRR) | |
| Number of Regulators | 1 |
| Load Regulation | 100 mV |
| Line Regulation | 120 mV |
Stock: 2679
Distributors
pcbx
pcbxUnit Price$0.18576
Ext.Price$0.18576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18576 | $0.18576 |
| 10 | $0.16383 | $1.63830 |
| 50 | $0.14448 | $7.22400 |
| 100 | $0.12789 | $12.78900 |
| 500 | $0.11320 | $56.60000 |
| 1000 | $0.10906 | $109.06000 |
| 3000 | $0.10507 | $315.21000 |
| 5000 | $0.10123 | $506.15000 |
