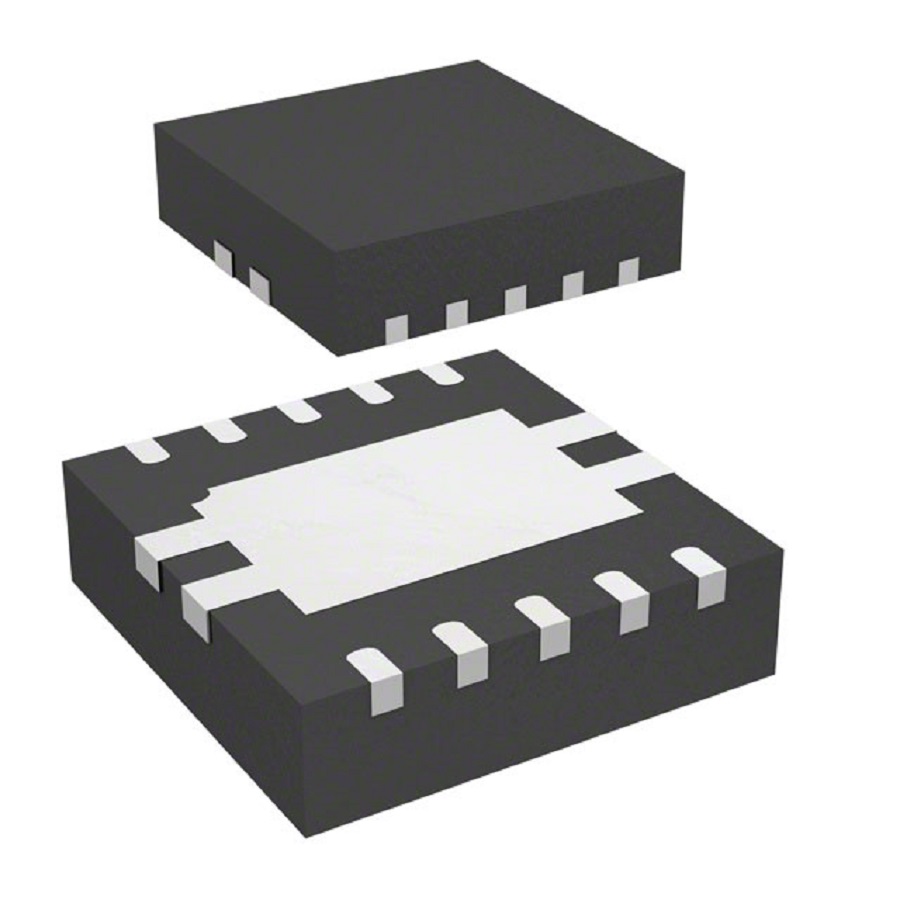

L7986TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
L7986TR
Datasheet:
Description:
Voltage Regulators - Switching VFQFPN-10 SMD/SMT Buck Adjustable 38 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Min Input Voltage | 4.5 V |
| Output Current | 3 A |
| Output Voltage | 38 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Output Current | 3 A |
| Quiescent Current | 2.4 mA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Buck |
| Switching Frequency | 1 MHz |
| Max Input Voltage | 38 V |
| Number of Outputs | 1 |
| Min Output Voltage | 600 mV |
| Max Output Voltage | 38 V |
| Schedule B | 8542390000 |
| Function | Step-Down |
Stock: 2376
Distributors
pcbx
pcbxUnit Price$1.59273
Ext.Price$1.59273
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.59273 | $1.59273 |
| 10 | $1.35193 | $13.51930 |
| 25 | $1.24151 | $31.03775 |
| 50 | $1.14011 | $57.00550 |
| 100 | $1.04699 | $104.69900 |
| 300 | $1.01104 | $303.31200 |
| 500 | $0.97632 | $488.16000 |
| 1000 | $0.94622 | $946.22000 |
