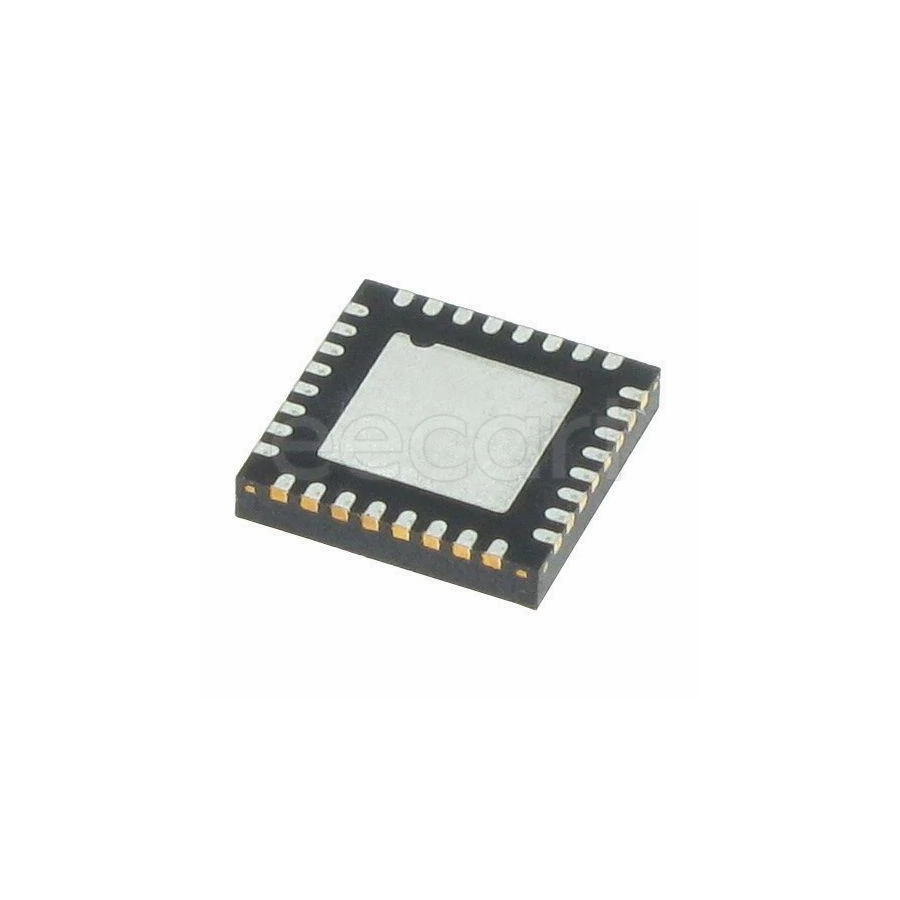

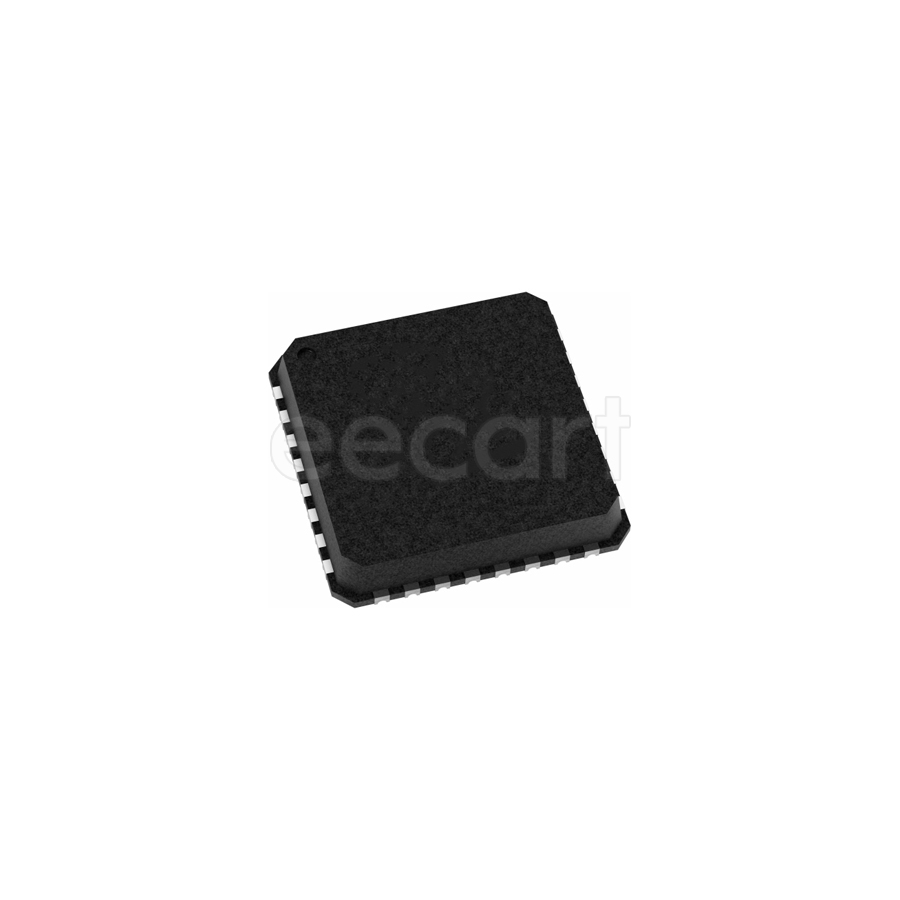

LAN8740A-EN
Manufacturer:
Microchip
Mfr.Part #:
LAN8740A-EN
Datasheet:
Description:
Ethernet Interface ICs SQFN-32 SMD/SMT 100 Mbps 10BASE-T, 100BASE-TX Number of Transceivers:1
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Height | 850 µm |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Interface | MDI-X, MII/RMII |
| Operating Supply Voltage | 1.2 V |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.8 V |
| Max Supply Current | 55 mA |
| Data Rate | 100 Mbps |
| Simplex/Duplex | Full Duplex |
| Number of Transceivers | 1 |
| Schedule B | 8542390000 |
| Standard | 10BASE-T, 100BASE-TX |
Stock: 1873
Distributors
pcbx
pcbxUnit Price$1.07358
Ext.Price$1.07358
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.07358 | $1.07358 |
| 10 | $0.97897 | $9.78970 |
| 25 | $0.89270 | $22.31750 |
| 50 | $0.85750 | $42.87500 |
| 100 | $0.82369 | $82.36900 |
