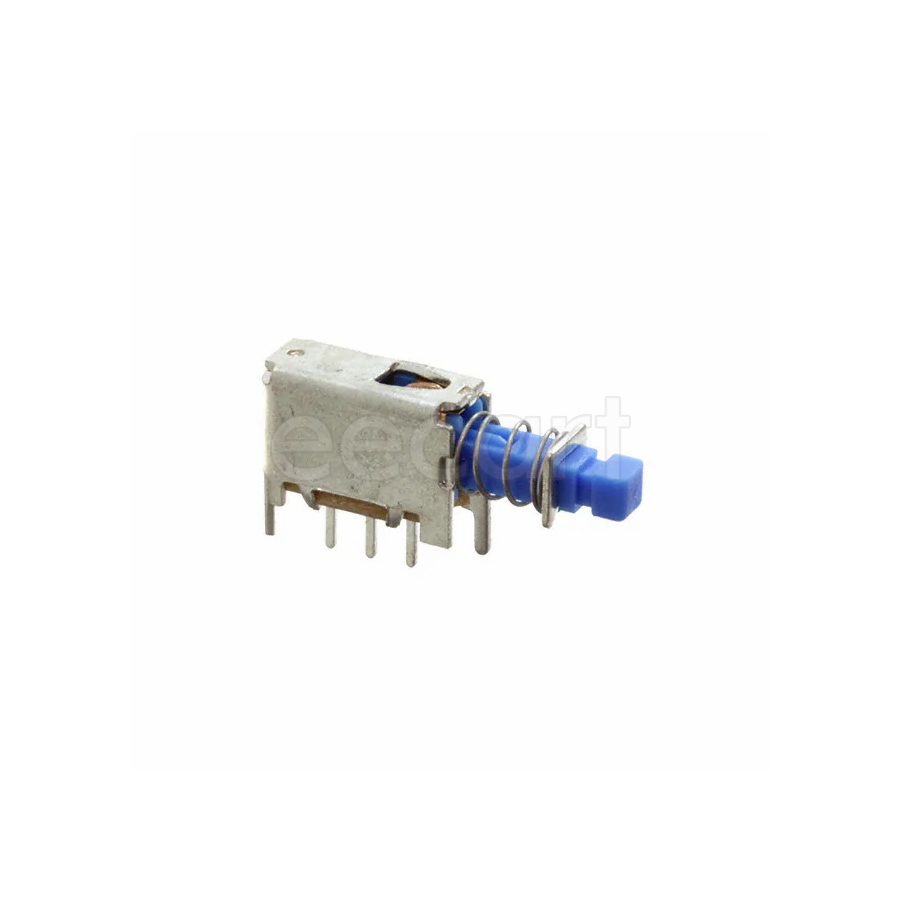

LC1258EENP
Manufacturer:
E-Switch
Mfr.Part #:
LC1258EENP
Datasheet:
Description:
Pushbutton Switches Through Hole SPDT ON - ON Plunger for Cap Non-Illuminated Standard Current Rating:300 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Height | 8.55 mm |
| Circuit Type | SPDT |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Right Angle |
| Actuator Length | 4 mm |
| Throw Configuration | SPDT |
| Housing Material | Tin |
| Contact Resistance | 20 mΩ |
| Switch Function | ON - ON |
| Electrical Life | 10 kcycles |
| Actuator Material | Acetal |
| Contact Current Rating | 300 mA |
| Actuator Type | Plunger for Cap |
| Life (Cycles) | 10 kCycles |
| Illumination Type | Non-Illuminated |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Type | Standard |
Stock: 1308
Distributors
pcbx
pcbxUnit Price$0.66352
Ext.Price$0.66352
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66352 | $0.66352 |
| 10 | $0.57378 | $5.73780 |
| 25 | $0.54135 | $13.53375 |
| 50 | $0.51795 | $25.89750 |
| 100 | $0.49549 | $49.54900 |
| 300 | $0.46985 | $140.95500 |
| 500 | $0.44553 | $222.76500 |
| 1000 | $0.42247 | $422.47000 |
