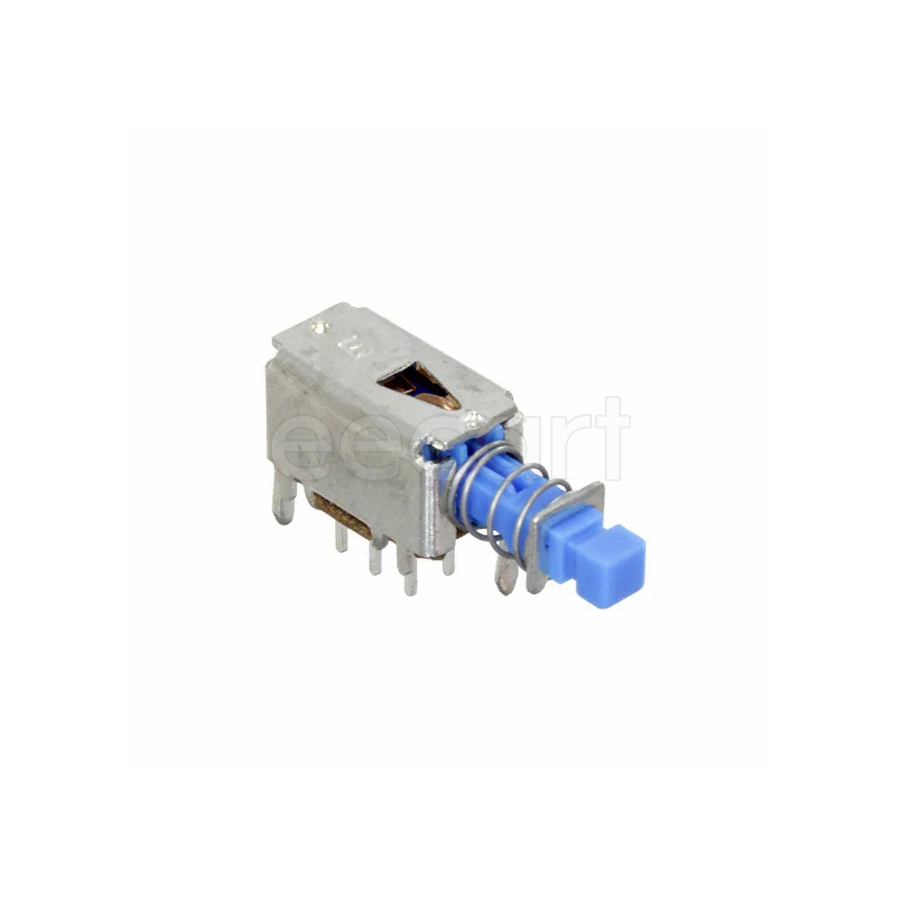

LC2259EENP
Manufacturer:
E-Switch
Mfr.Part #:
LC2259EENP
Datasheet:
Description:
Pushbutton Switches Through Hole DPDT ON - ON Without Cap Non-Illuminated Standard Current Rating:300 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | DPDT |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Bronze, Silver |
| Type | Standard |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Right Angle |
| Actuator Length | 4 mm |
| Throw Configuration | DPDT, SPDT |
| Housing Material | Tin |
| Contact Resistance | 200 mΩ |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Actuator Material | Acetal |
| Actuator Type | Without Cap |
| Termination Style | PC Pin |
Stock: 683
Distributors
pcbx
pcbxUnit Price$0.69454
Ext.Price$0.69454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.69454 | $0.69454 |
| 10 | $0.59754 | $5.97540 |
| 25 | $0.56389 | $14.09725 |
| 50 | $0.53935 | $26.96750 |
| 100 | $0.51600 | $51.60000 |
| 300 | $0.49069 | $147.20700 |
| 500 | $0.46663 | $233.31500 |
| 1000 | $0.44375 | $443.75000 |
