LD09S33E4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
LD09S33E4GV00LF
Datasheet:
Description:

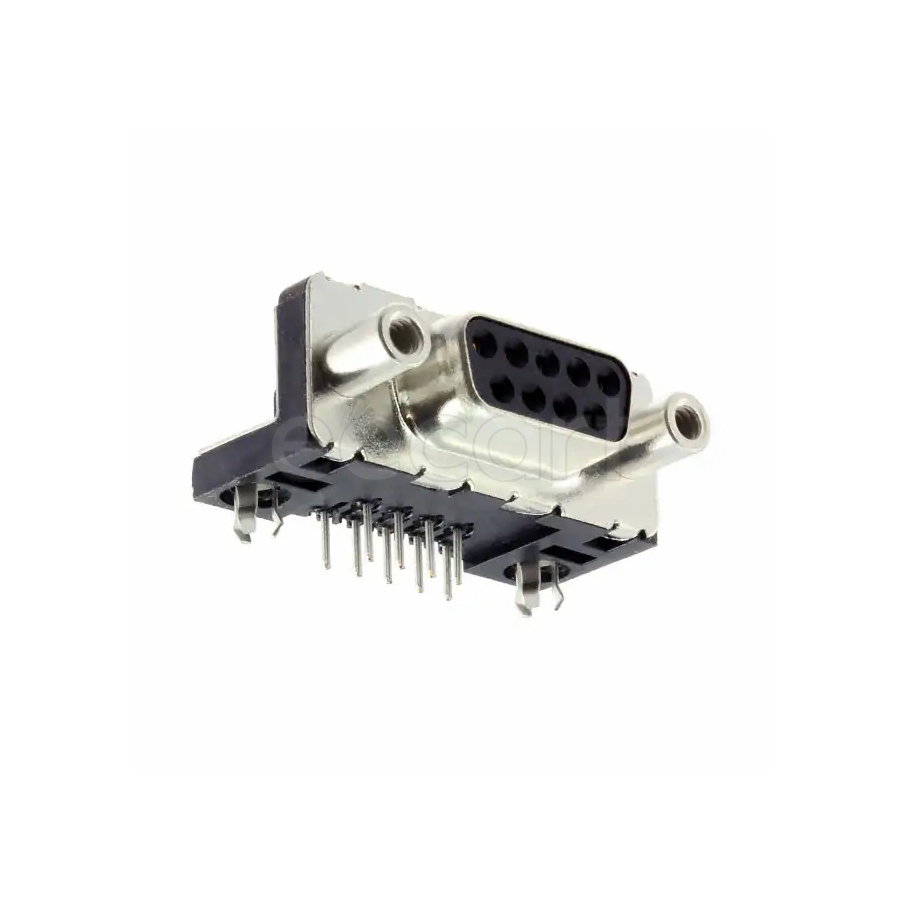

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Receptacle
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Dielectric Material | Thermoplastic |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2.74 mm |
| Current Rating | 5 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 9 |
| Connector Type | D-Sub, Receptacle, Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Schedule B | 8536695050 |
| Shell Material | Steel |
| Type | Receptacle, Female Sockets |
| Contact Type | Signal |
Stock: 664
Distributors
pcbx
pcbxUnit Price$0.76944
Ext.Price$0.76944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76944 | $0.76944 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.64462 | $16.11550 |
| 50 | $0.61299 | $30.64950 |
| 100 | $0.56838 | $56.83800 |
| 300 | $0.52702 | $158.10600 |
| 500 | $0.48867 | $244.33500 |
| 1000 | $0.45311 | $453.11000 |
