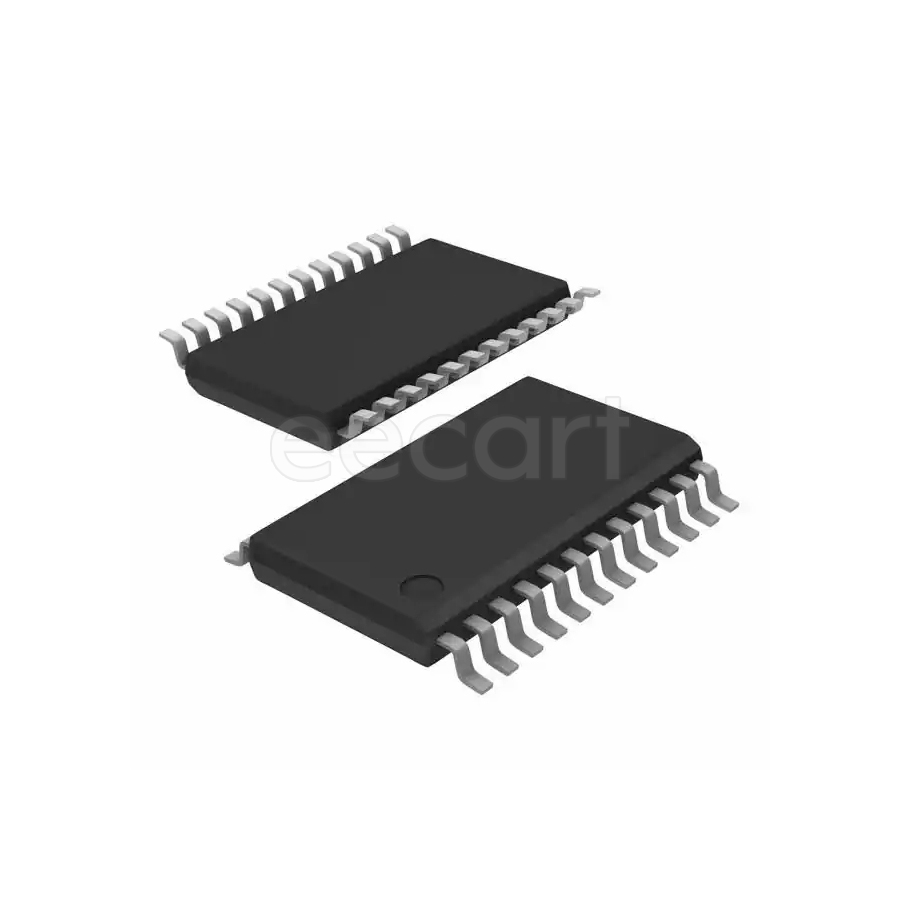

LED1642GWPTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
LED1642GWPTR
Datasheet:
Description:
LED Drivers QSOP-24 SMD/SMT PWM 50 mA
| Parameter | Value |
|---|---|
| Length | 8.76 mm |
| Width | 4.01 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Height | 1.48 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 30 MHz |
| Type | LED Lighting Drivers |
| Min Input Voltage | 3 V |
| Output Current | 50 mA |
| Output Voltage | 19 V |
| Operating Supply Voltage | 3.3 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Max Output Current | 40 mA |
| Number of Channels | 16 |
| Max Supply Current | 10 mA |
| Topology | Boost |
| Switching Frequency | 30 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 16 |
| Dimming | PWM |
| Nominal Supply Current | 10 mA |
| Output Current per Channel | 40 mA |
| Min Output Voltage | -500 mV |
| Max Input Voltage (DC) | 5.5 V |
| Max Output Voltage | 20 V |
| Min Input Voltage (DC) | 3 V |
| Schedule B | 8542390000 |
| Internal Switch | Yes |
Stock: 111
Distributors
pcbx
pcbxUnit Price$1.55424
Ext.Price$1.55424
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55424 | $1.55424 |
| 10 | $1.31376 | $13.13760 |
| 25 | $1.21687 | $30.42175 |
| 50 | $1.12713 | $56.35650 |
| 100 | $1.04401 | $104.40100 |
