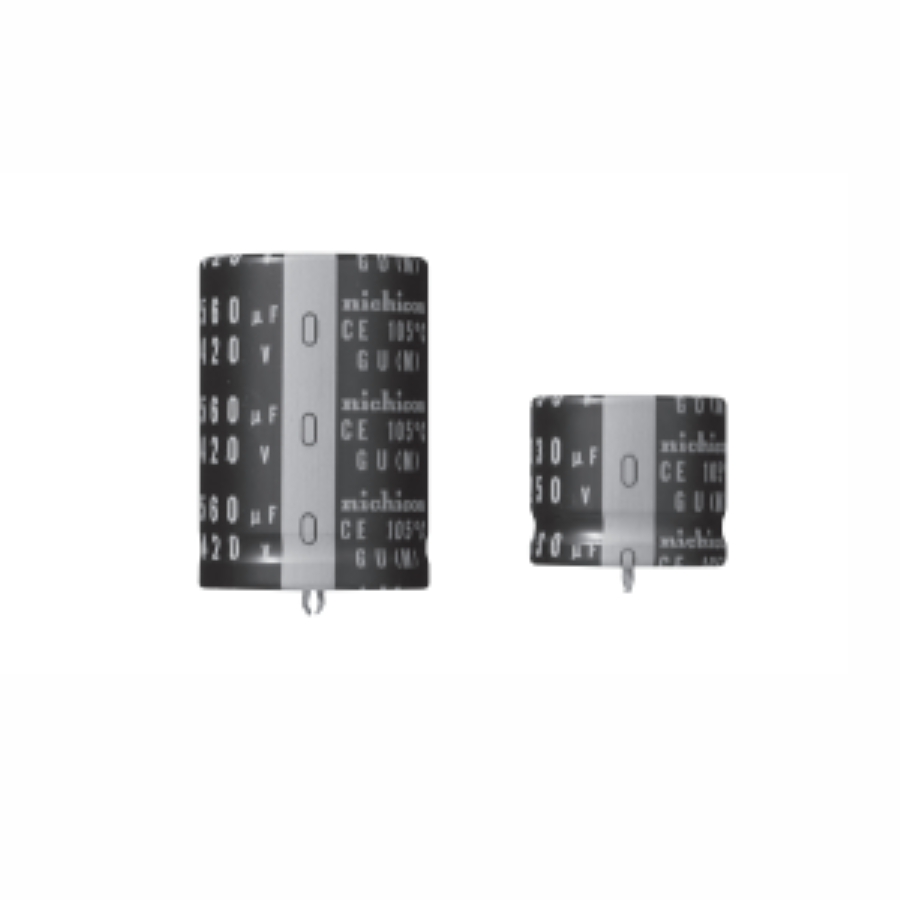

LGU2W331MELB
Manufacturer:
Nichicon
Mfr.Part #:
LGU2W331MELB
Datasheet:
Description:
Aluminum Electrolytic Capacitors 30.00mm×50.00mm Through Hole 330 µF 20 % 450 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 450 V |
| Tolerance | 20 % |
| Life (Hours) | 3000 Hours |
| Ripple Current | 1.45 A |
| Height - Seated (Max) | 50 mm |
| Length | 50 mm |
| Termination | Snap in |
| Diameter | 30 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Leakage Current | 1.15 mA |
| Height | 50 mm |
| Packaging | Bulk |
| Voltage Rating | 450 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Lead Pitch | 10 mm |
| Voltage | 450 V |
| Ripple Current (AC) | 1.45 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220040 |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.0735 A @ 50 kHz |
Stock: 1
Distributors
pcbx
pcbxUnit Price$4.30310
Ext.Price$4.30310
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.30310 | $4.30310 |
| 10 | $3.74832 | $37.48320 |
| 25 | $3.52488 | $88.12200 |
| 50 | $3.31476 | $165.73800 |
| 100 | $3.11719 | $311.71900 |
| 300 | $3.03858 | $911.57400 |
| 500 | $2.96199 | $1480.99500 |
| 1000 | $2.89176 | $2891.76000 |
