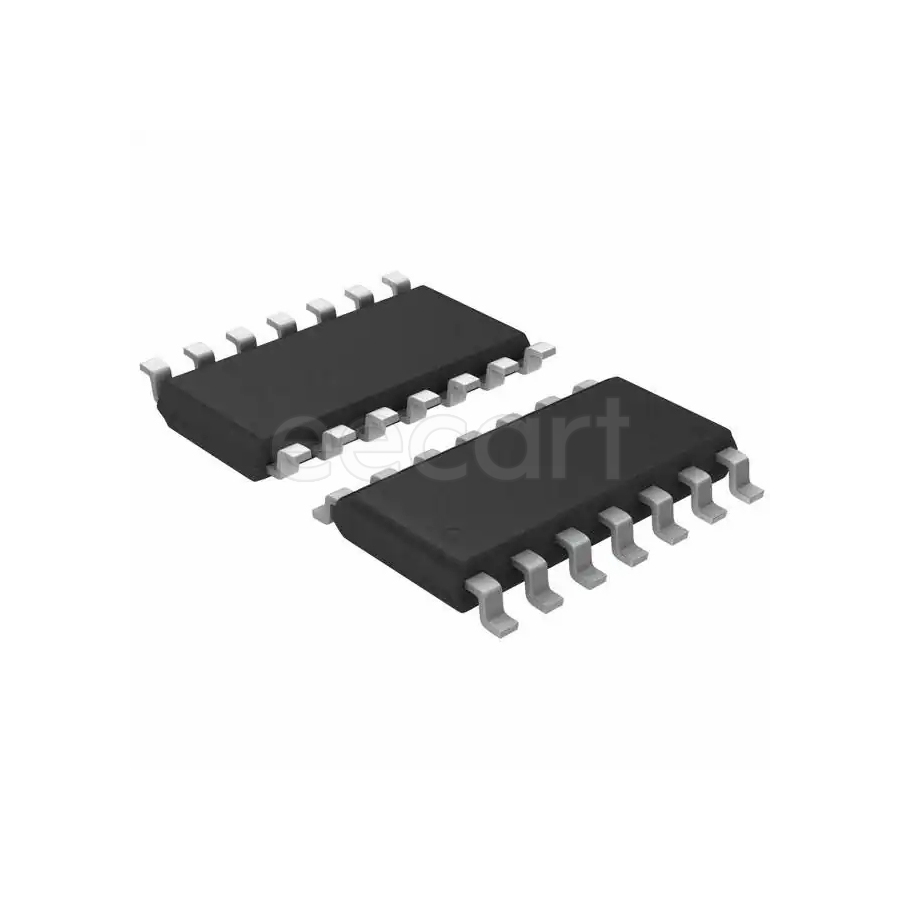

LM324D
Manufacturer:
STMicroelectronics
Mfr.Part #:
LM324D
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SO-14 SMD/SMT Low Power Amplifiers Number of Circuits:4
| Parameter | Value |
|---|---|
| Length | 8.75 mm |
| Width | 4 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 14 |
| Height | 1.65 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 4.535924 g |
| Number of Elements | 4 |
| Min Input Voltage | 0 V |
| Output Current | 40 mA |
| Number of Circuits | 4 |
| Bandwidth | 1.3 MHz |
| Operating Supply Voltage | 15 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 4 |
| Slew Rate | 400 mV/µs |
| Common Mode Rejection Ratio (CMRR) | 70 dB |
| Operating Supply Current | 1.5 mA |
| Input Bias Current | 150 nA |
| Max Supply Current | 1.2 mA |
| Max Input Voltage | 28.5 V |
| Dual Supply Voltage | 9 V |
| Nominal Supply Current | 700 µA |
| Output Current per Channel | 70 mA |
| Gain Bandwidth Product | 1.3 MHz |
| Input Offset Voltage (Vos) | 5 mV |
| Max Dual Supply Voltage | 15 V |
| Min Dual Supply Voltage | 1.5 V |
| Voltage Gain | 100 dB |
| Number of Amplifiers | 4 |
| Input Voltage Noise Density | 40 nV/sqrt Hz |
| Amplifier Type | Low Power Amplifiers |
Stock: 25
Distributors
pcbx
pcbxUnit Price$0.36518
Ext.Price$0.36518
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36518 | $0.36518 |
| 10 | $0.33885 | $3.38850 |
| 25 | $0.31442 | $7.86050 |
| 50 | $0.29174 | $14.58700 |
| 100 | $0.26988 | $26.98800 |
| 300 | $0.24966 | $74.89800 |
| 500 | $0.23096 | $115.48000 |
| 1000 | $0.22299 | $222.99000 |
| 3000 | $0.21529 | $645.87000 |
| 5000 | $0.20786 | $1039.30000 |
