LMV339IRUCR
Manufacturer:
Texas Instruments
Mfr.Part #:
LMV339IRUCR
Datasheet:
Description:

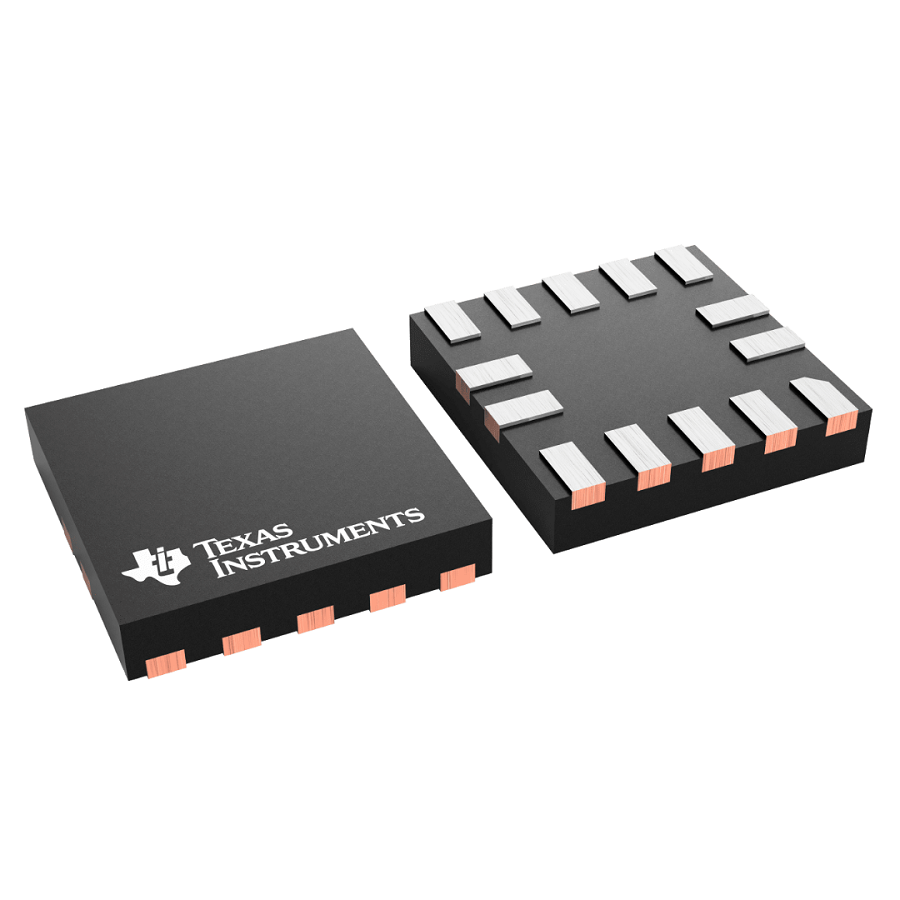

Comparators QFN-14 SMD/SMT General Purpose
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 400 µm |
| Packaging | Reel |
| Thickness | 0.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Type | General Purpose |
| Number of Elements | 4 |
| Output Current | 84 mA |
| Output Type | Rail-to-Rail |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Response Time | 200 ns |
| Number of Channels | 4 |
| Operating Supply Current | 75 µA |
| Input Bias Current | 250 nA |
| Quiescent Current | 350 µA |
| Propagation Delay | 600 ns |
| Max Supply Current | 200 µA |
| Nominal Supply Current | 300 µA |
| Max Input Current | 250 nA |
| Input Offset Voltage (Vos) | 7 mV |
| Voltage Gain | 93.98 dB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
