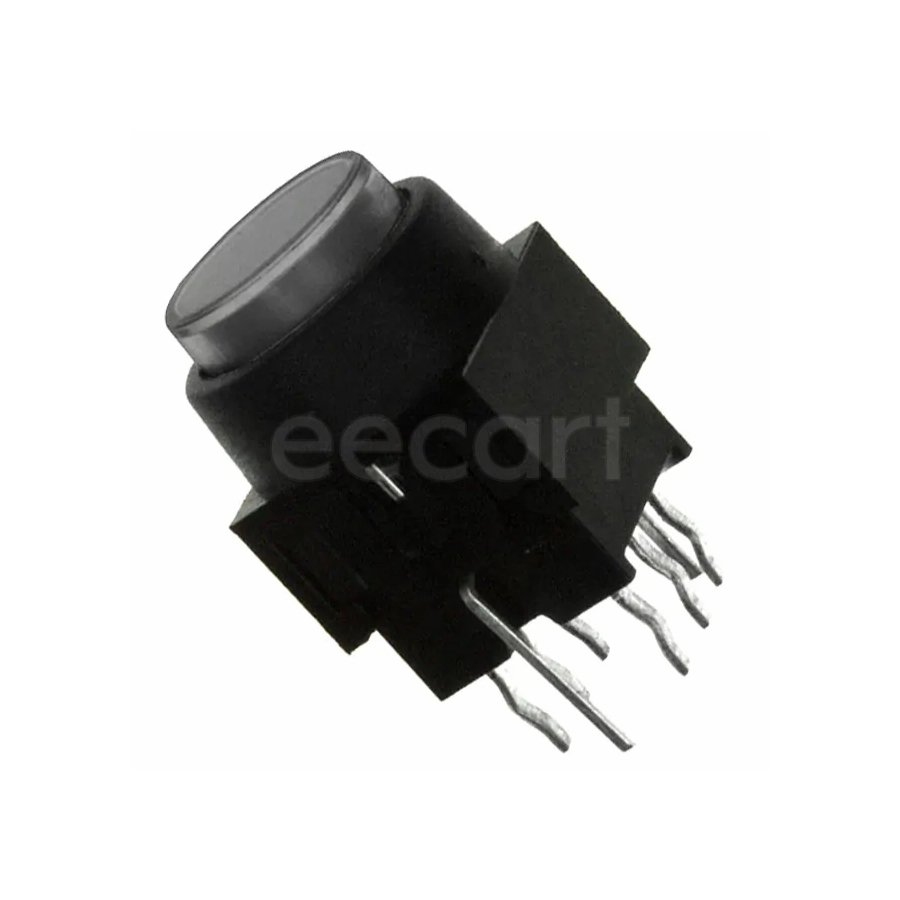

LP4OA1PBBTR
Manufacturer:
E-Switch
Mfr.Part #:
LP4OA1PBBTR
Datasheet:
Description:
Pushbutton Switches Through Hole DPDT On-Mom Round, Button Illuminated, LED Standard, Illuminated Current Rating:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | DPDT |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Current Rating | 100 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Straight |
| Illumination Color | Red |
| Hole Diameter | 8.2 mm |
| Actuator Length | 1.9 mm |
| Throw Configuration | DPDT |
| Contact Resistance | 50 mΩ |
| Switch Function | On-Mom |
| Illumination Type | Illuminated, LED |
| Mechanical Life | 50 kcycles |
| Actuator Type | Round, Button |
| Cap Color | Clear |
| Illumination Voltage | 2.2 V |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Type | Standard, Illuminated |
Stock: 236
Distributors
pcbx
pcbxUnit Price$2.25232
Ext.Price$2.25232
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.25232 | $2.25232 |
| 10 | $1.94720 | $19.47200 |
| 25 | $1.83654 | $45.91350 |
| 50 | $1.74977 | $87.48850 |
| 100 | $1.66710 | $166.71000 |
| 300 | $1.58833 | $476.49900 |
| 500 | $1.51329 | $756.64500 |
| 1000 | $1.44178 | $1441.78000 |
