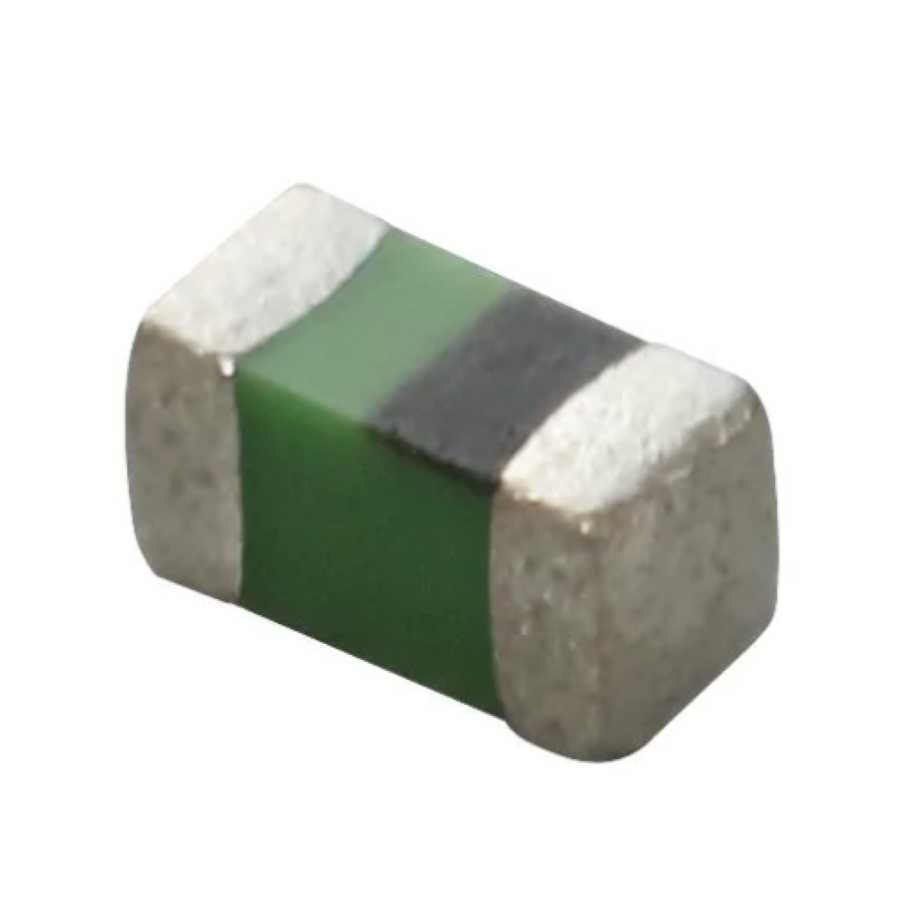

LQG15HS27NJ02D
Manufacturer:
Murata
Mfr.Part #:
LQG15HS27NJ02D
Datasheet:
Description:
Fixed Inductors 0402(1005 Metric) SMD/SMT 27 nH 5 % 350 mA 460 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 0.56 mm |
| Length | 1 mm |
| Width | 508 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Resistance | 460 mΩ |
| Height | 500 µm |
| Packaging | Reel |
| Depth | 550 µm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 1.7 GHz |
| Q Factor | 8 |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 460 mΩ |
| Test Frequency | 100 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 6 days ago) |
| Shielding | Unshielded |
| Inductance | 27 nH |
| Core Material | Air |
| RMS Current (Irms) | 350 mA |
| inductance tolerance | 5 % |
| Max DC Current | 300 mA |
| Series Resistance | 460 mΩ |
| DC Current | 300 mA |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 6 days ago) |
| Type | Multilayer |
Stock: 38440
Distributors
pcbx
pcbxUnit Price$0.02164
Ext.Price$0.02164
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.02164 | $0.02164 |
| 10 | $0.01082 | $0.10820 |
| 50 | $0.00832 | $0.41600 |
| 100 | $0.00640 | $0.64000 |
| 500 | $0.00568 | $2.84000 |
| 1000 | $0.00504 | $5.04000 |
| 3000 | $0.00441 | $13.23000 |
| 5000 | $0.00416 | $20.80000 |
| 10000 | $0.00392 | $39.20000 |
| 30000 | $0.00379 | $113.70000 |
| 50000 | $0.00366 | $183.00000 |
| 100000 | $0.00337 | $337.00000 |
